Kidde KE-DB3010B Intelligent Addressable Detector Base – Black

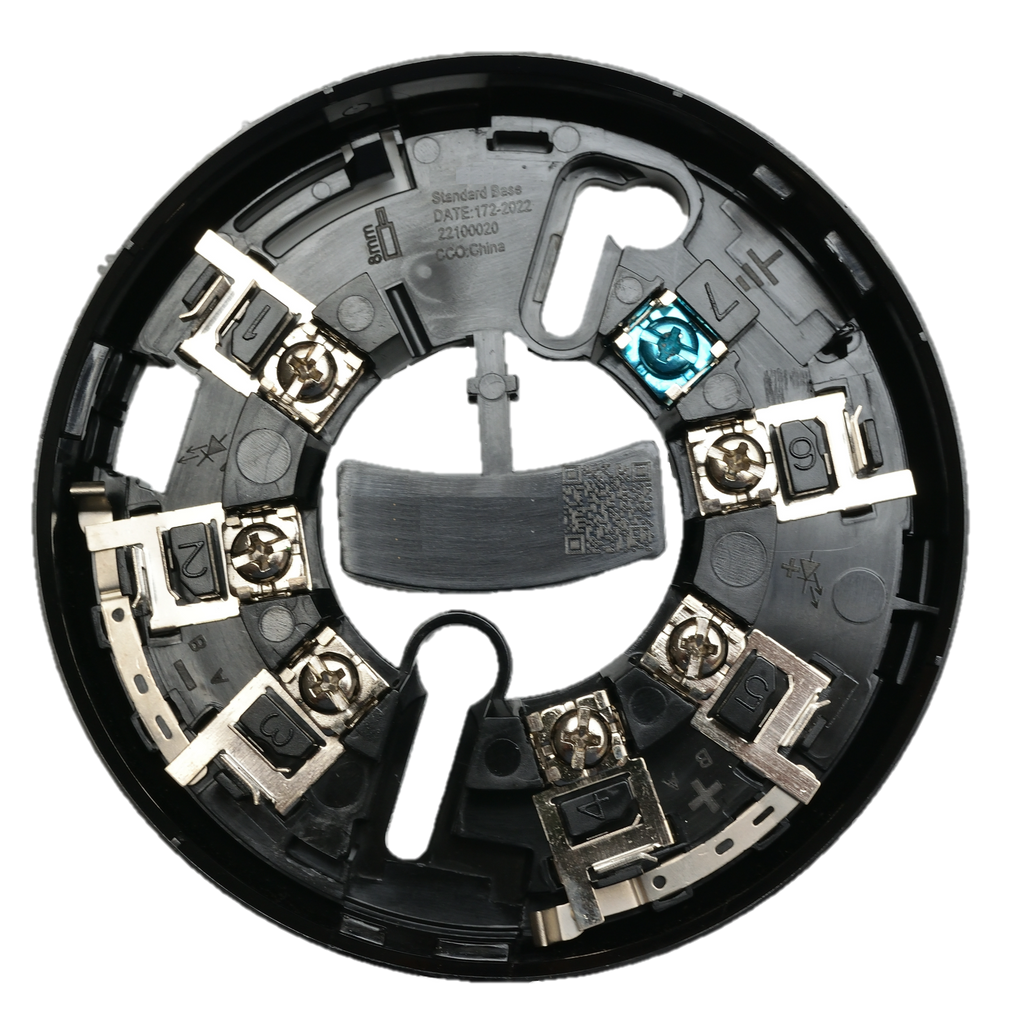

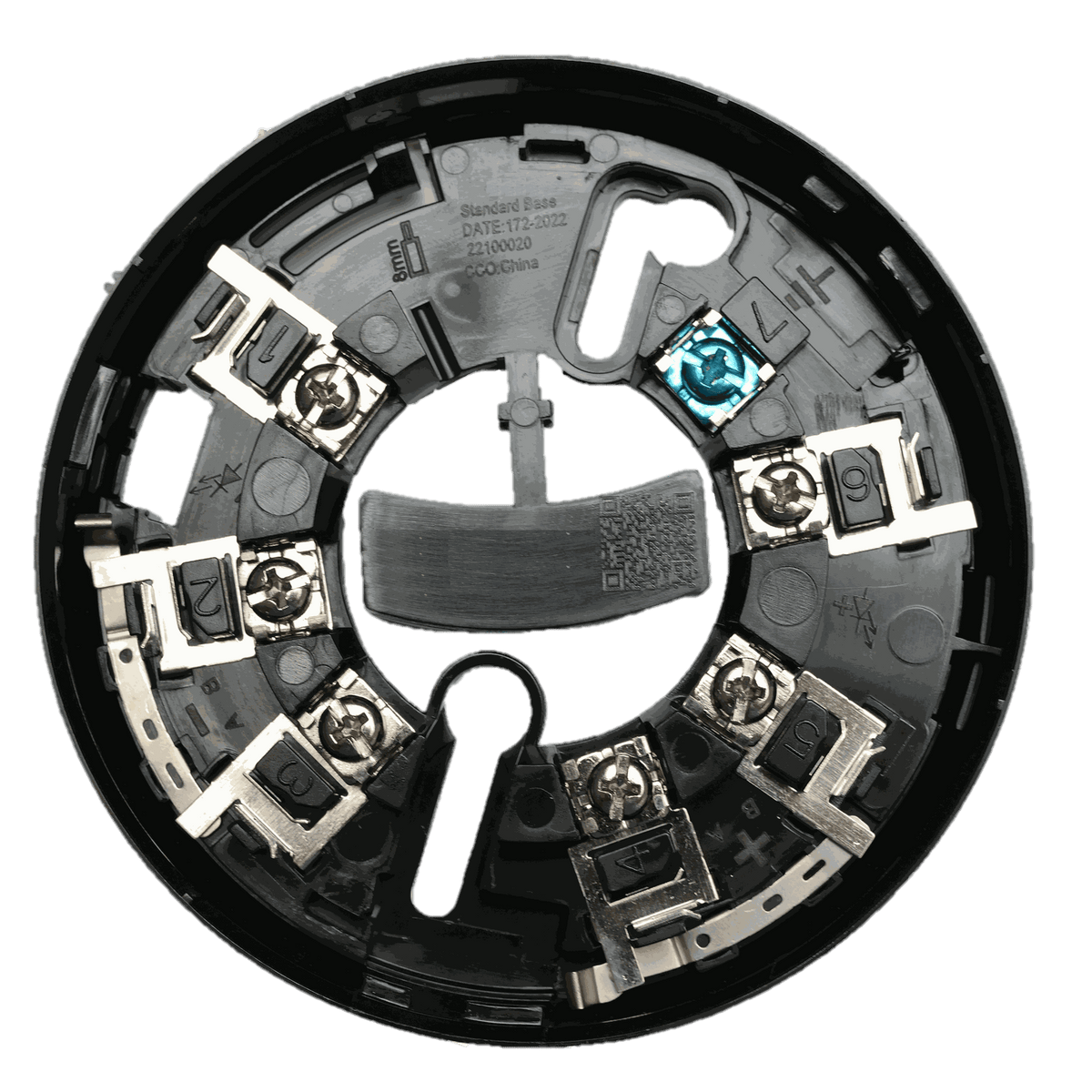

The KE-DB3010B is a graphite black, surface-mount first-fix standard detector base, part of the Kidde Commercial Excellence range of intelligent addressable devices. It allows any Kidde Excellence addressable point detector to be inserted, removed or replaced without rewiring, using a simple twist-and-lock action.

Clearly marked, colour-coded terminals with captive screws make loop wiring quick and secure, and built-in isolation bridges keep the loop continuous when no detector is fitted, so the cabling can be tested before the detectors go in.

Key features

• Simple twist-and-lock detector fitting with audible click feedback
• Selectable detector locking mechanism protects against unauthorised removal
• Insert and locked position indications for quick visual checks
• Supplied with an address tag, which can be fitted in two locations around the base
• Large rear cable entry plus side entry and exit without extra fixtures
• Key-hole slots and first-fix screw features for fixing to ceilings or conduit boxes
• Colour-coded screen terminal and cable cut-length template in the base
• Isolation bridges allow loop measurements without devices installed
• Dual contact points on every connector; remote indicator support

Technical specifications

• Compatibility: Kidde Commercial Excellence series point detectors
• Connectivity: 2-wire loop, earth/screen and remote indicator
• Terminals: 7 (A+, A-, B+, B-, Screen, RI+, RI-)
• Cable: 0.8 to 5.2 mm² (AWG 18 to 10)
• Cable entries: 5 side, 1 rear
• Dimensions: 100 x 17 mm (diameter x height)
• Weight: 55 g
• Material: polycarbonate; colour graphite black (RAL 9011)
• Operating temperature: -10 to +65°C; storage -30 to +75°C
• Humidity: 10 to 93% non-condensing; indoor use
• Compliance: CE, REACH, RoHS 3, WEEE
