Shop all Axis Communications
AXIS 30W Midspan 30W, external mounting
SKU: 01944-001Brand: Axis Communications
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |

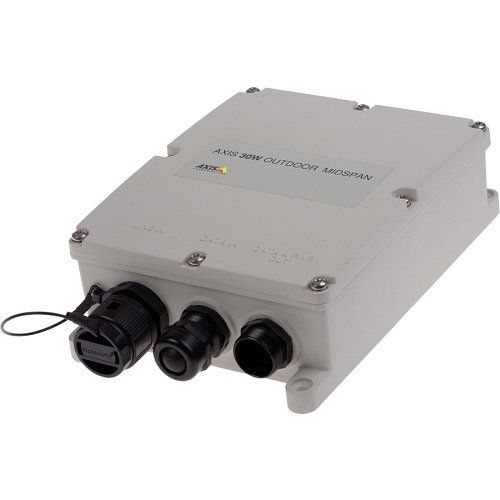

AXIS 30W Midspan 30W, external mounting
£287.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Outdoor-ready, IP66/IP67 - and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240V AC
Frequently bought together
Axis Communications
AXIS 5502-731 Compatible with selected Axis PTZ cameras, 5 m
Sale price£80.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5503-161 Theia Linear Optical Technology Varifocal Ultra-Wide Field of View, 1.8-3mm Lens, White
Sale price£276.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5503-431 RJ45 female/female IP66 cable connector
Sale price£25.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5507-121 Weather cover for AXIS P14XX, K
Sale price£41.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
Main Features
- Outdoor-ready, IP66/IP67 - and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240V AC
Specifications
| Compatibility | AXIS Door Controllers:; A1001; A1601AXIS Fixed Cameras:; A9161; A9188-VEAXIS Illuminators:; C1310-E; C1410AXIS Thermal Cameras:; D2110-VE Security RadarAXIS Speakers:; F34 Main Unit; F34 Surveillance system; F41 Main Unit; F44 Dual Audio InputAXIS PTZ Cameras:; I8016-LVEAXIS Modular Cameras:; Long Range PoE Extender KitAXIS Power Over Ethernet:; M1065-L; M1134; M1135; M1135-E; M1137; M1137-E; M1145-L; M2025-LE; M2026-LE Mk II; M3015; M3016; M3037-PVE; M3057-PLVE; M3057-PLVE Mk II; M3058-PLVE; M3064-V; M3065-V; M3066-V; M3067-P; M3068-P; M3075-V; M3077-PLVE; M3115-LVE; M3116-LVE; M3205-LVE; M3206-LVE; M4206-LV; M4206-V; M5054; M5055; M5065; M5525-E; M7104; P1214; P1214-E; P1224-E; P1244; P1245; P1254; P1264; P1265; P1275; P1280-E; P1290-E; P1375; P1375-E; P1377; P1377-LE; P1378; P1378-LE; P1435-LE; P1445-LE-3; P1447-LE; P1448-LE; P1455-LE; P3227-LV; P3227-LVE; P3228-LV; P3228-LVE; P3245-LV; P3245-LVE; P3245-V; P3245-VE; P3247-LV; P3247-LVE; P3248-LV; P3248-LVE; P3255-LVE; P3367-V; P3367-VE; P3374-LV; P3374-V; P3375-LV; P3375-LVE; P3375-V; P3375-VE; P3715-PLVE; P3717-PLE; P3719-PLE; P3807-PVE; P5414-E; P5415-E; P5654-E; P5655-E; P7304; P8815-2AXIS PoE Extenders:; P9106-V; PoE Splitter 5 VAXIS Security Radars:; Q1615 Mk III; Q1615-LE Mk III; Q1645; Q1645-LE; Q1647; Q1647-LEAXIS Fixed Dome Cameras:; Q1941-E; Q1941-E PT Mount; Q1942-E; Q1942-E PT Mount; Q2901-E; Q2901-E PT MountAXIS Video Encoders:; Q3515-LV; Q3515-LVE; Q3517-LV; Q3517-LVE; Q3517-SLVE; Q3518-LVE; Q3527-LVE; Q3615-VE; Q3617-VE; Q3708-PVE; Q3709-PVE; Q6074; Q6074-E; Q6075; Q6075-E; Q6128-E; Q6154-E; Q6155-EAXIS People Counters:; Q7411; Q7424-R Mk II; Q9216-SLVAXIS Housings:; T90C20 Fixed Dome IR-LED; T90D20 PoE IR-LED; T90D25 PoE W-LEDAXIS Intercoms:; T92E20 Outdoor Housing; T92G20 Outdoor Housing; T93F20 Outdoor HousingAXIS I/O Relay Modules: |
|---|---|
| Depth | 140.0mm |
| Environmental Certification | IEC/EN 60529 IP67; NEMA 250 Type 4X |
| Form Factor | Pole Mount; Wall Mount |
| Height | 60.0mm |
| Ingress Protection Rating | IP67 |
| Input Ports | 1 x 10/100/1000Base-T |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | 3-Year |
| Maximum Frequency | 60Hz |
| Maximum Output Power | 30W |
| Minimum Frequency | 50Hz |
| Mount Type | Pole Mount; Wall Mount |
| NDAA Compliant | Yes |
| Output Ports | PoE |
| Package Contents |
|
| PoE Budget | 30W |
| Product Type | PoE Injector |
| Protection Type | Surge Protection |
| Width | 170.0mm |
| Country of Origin | CN |
| Manufacturer | Axis Communications |
| Maximum Output Voltage | 54V |
| Operating Relative Humidity (H-H) | 10-100% |
| Operating Temperature (T-T) | -40-65°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| Security Features | GS-Mark; IEC/EN 60950-1; IEC/EN 60950-22; IEC/EN 62368-1; UL 60950-1; UL 60950-22 |
| Storage Temperature (T-T) | -40-85°C |
| WEEE Compliant | Compliant |
Downloads
Datasheet
AXIS 30W Midspan 30W, external mounting Need the datasheet? Our team will email it to you. Request datasheet
