Shop all Axis Communications
AXIS 30W Midspan for Indoor Use, 240V AC (02172-003)
SKU: 02172-003Brand: Axis Communications
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 2 | 2 to 3 working days |
AXIS 30W Midspan for Indoor Use, 240V AC (02172-003)
£84.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 24V AC and 10-28V DC input
- IEEE 802.3af and 802.3at output
- Plug-and-play
- Data rate 10/100/1000 Mbps
- Automatically detects PoE, PoE+
- Shielded RJ45, EIA 568A and 568B 3-pin AC/DC connector
Frequently bought together
Axis Communications
AXIS 5502-731 Compatible with selected Axis PTZ cameras, 5 m
Sale price£80.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5503-161 Theia Linear Optical Technology Varifocal Ultra-Wide Field of View, 1.8-3mm Lens, White
Sale price£276.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5503-431 RJ45 female/female IP66 cable connector
Sale price£25.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5507-121 Weather cover for AXIS P14XX, K
Sale price£41.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS 5700-371 RJ45 Connector with Push-pull Plug
Sale price£43.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

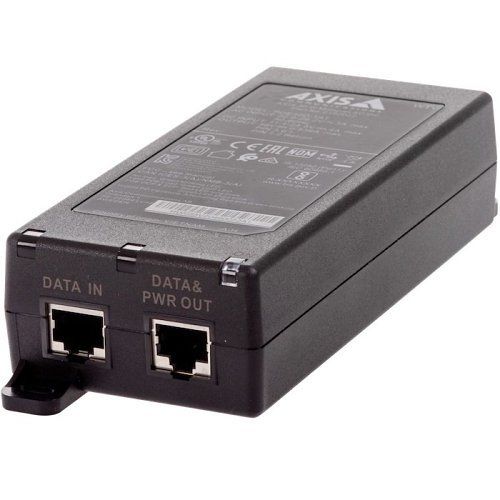

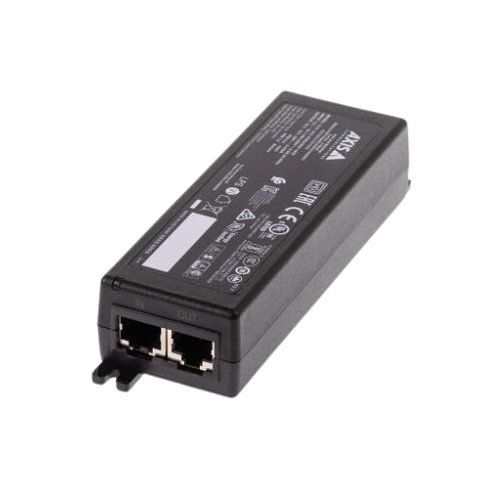

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.
Main Features
- 24V AC and 10-28V DC input
- IEEE 802.3af and 802.3at output
- Plug-and-play
- Data rate 10/100/1000 Mbps
- Automatically detects PoE, PoE+
- Shielded RJ45, EIA 568A and 568B 3-pin AC/DC connector
- DC input voltage 10 to 28 VDC
- Wall, shelf or DIN rail mounting
- Compatible with Axis PoE devices
- Flexible installation
Specifications
| Compatibility | Axis Fixed Cameras:M1065-L; A9161; A9188; A9188-VEAxis Illuminators:T90C20 Fixed Dome IR-LED; Axis I/O Relay Modules:; Axis PTZ Cameras:; C1410Axis Thermal Cameras:P1280-E; D2110-VEAxis Speakers:C1310-E; F34 Surveillance system; F41 Main Unit; F44 Dual Audio InputAxis Mounts:T91G61 Wall Mount; M1134; M1135; M1135-E; M1137; M1137-E; M1145-L; M2025-LE; M2026-LE Mk II; M3016; M3037-PVE; M3057-PLVE; M3058-PLVE; M3064-V; M3065-V; M3066-V; M3067-P; M3068-P; M3075-V; M3115-LVE; M3116-LVE; M3205-LVE; M3206-LVE; M4206-LV; M4206-V; M5054; M5055; M5065; M5525-E; P1214; P1214-E; P1224-E; P1244; P1245; P1254; P1264; P1265; P1275; P1290-E; P1375; P1375-E; P1377; P1377-LE; P1378; P1378-LE; P1445-LE; P1445-LE-3; P1447-LE; P1448-LE; P1455-LE; P3227-LV; P3227-LVE; P3228-LV; P3228-LVE; P3245-LV; P3245-LVE; P3245-V; P3245-VE; P3247-LV; P3247-LVE; P3248-LV; P3248-LVE; P3255-LVE; P3367-V; P3367-VE; P3374-LV; P3374-V; P3375-LV; P3375-LVE; P3375-V; P3375-VE; P3715-PLVE; P3717-PLE; P3719-PLE; P3904-R MK II; P3905-R Mk II; P3915-R Mk II; P3925-R; P3935-LR; P5414-E; P5415-E; P5654-E; P5655-E; P7304; P9106-V; Q1615 Mk II; Q1615 Mk III; Q1615-E Mk II; Q1615-LE Mk III; Q1645; Q1645-LE; Q1647; Q1647-LE; Q1659; Q1700-LE; Q1785-LE; Q1786-LE; Q1798-LEAxis Fixed Dome Cameras:M3015; Q1941-E; Q1941-E PT Mount; Q1942-E; Q1942-E PT Mount; Q2901-E; Q2901-E PT MountAxis Video Encoders:M7104; Q3515-LV; Q3515-LVE; Q3517-LV; Q3517-LVE; Q3517-SLVE; Q3518-LVE; Q3527-LVE; Q3615-VE; Q3617-VE; Q3708-PVE; Q3709-PVE; Q6074; Q6074-E; Q6075; Q6075-E; Q6128-E; Q6154-E; Q6155-EAxis PoE Extenders:Long Range PoE Extender Kit (01857-001)Axis Power Over Ethernet:PoE Splitter 5 V (02044-001)Axis Security Radars:D2050-VE; Q7411; Q7424-R Mk II; Q9216-SLVAxis Housings:T92E20 Outdoor Housing; T90D20 PoE IR-LED; T90D25 PoE W-LEDAxis Intercoms:A8207-VE Mk IIAxis Modular Cameras:F34 Main Unit; T91H61 Wall Mount; T92G20 Outdoor Housing; T93F20 Outdoor Housing |
|---|---|
| Data Transfer Rate | 100Mbps |
| Depth | 140.1mm |
| Environmental Certification | IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78 |
| Environmentally Friendly | Yes |
| Form Factor | DIN Rail Mount; Shelf; Wall |
| Height | 30.0mm |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | Not provided |
| Material | Plastic |
| Maximum Frequency | 60Hz |
| Maximum Output Power | 30W |
| Minimum Frequency | 50Hz |
| Mount Type | DIN Rail Mount; Shelf Mount; Wall Mount |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Output Ports | PoE |
| Product Series | 30 W Midspan |
| Product Type | PoE Injector |
| TAA Compliant | No |
| Width | 46.0mm |
| Colour | Black |
| Country of Origin | VN |
| Manufacturer | Axis Communications |
| Maximum Output Voltage | 56V |
| Networking Standards | IEEE 802.3af; IEEE 802.3at |
| Operating Relative Humidity (H-H) | 0.95 |
| Operating Temperature (T-T) | -20-40°C; -20-55°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| Storage Temperature (T-T) | -40-75°C |
| WEEE Compliant | Compliant |
Downloads
Datasheet
AXIS 30W Midspan for Indoor Use, 240V AC (02172-003) Need the datasheet? Our team will email it to you. Request datasheet
