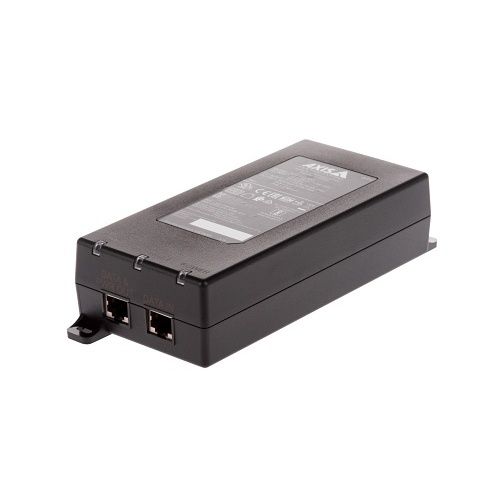

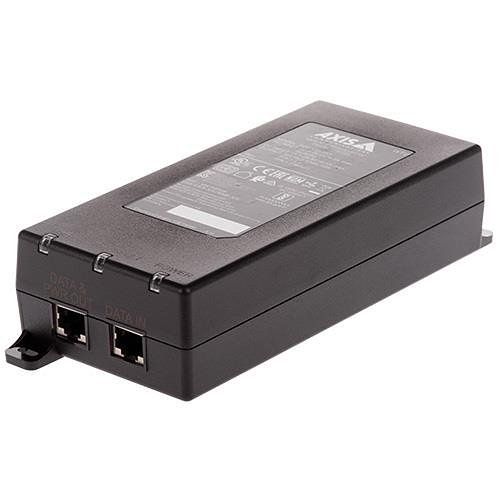

AXIS 90W Midspan AC-DC, Plug-and-Play, Compatible with AXIS PoE Devices, 90W, (Replaces T8125)
SKU: 02209-001Brand: Axis Communications
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
AXIS 90W Midspan AC-DC, Plug-and-Play, Compatible with AXIS PoE Devices, 90W, (Replaces T8125)
£223.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 24V AC and 20-26.4 V DC input
- Up to IEEE 802.3bt (90 W) output
- Ideal for retrofitting PTZ
- Compatible with Axis PoE devices
- Flexible installation
Frequently bought together
Axis Communications
AXIS A1210 A12 Series, Network Door Controller
Sale price£533.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS A8207-VE MkII Network Video Door Station, Grey
Sale price£1,922.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS A9188-VE A91 Series Network I/O Relay Module, 8 I/Os with Supervised Inputs and Configurable Levels, Includes T98A15-VE
Sale price£1,035.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras. 20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
Main Features
- 24V AC and 20-26.4 V DC input
- Up to IEEE 802.3bt (90 W) output
- Ideal for retrofitting PTZ
- Compatible with Axis PoE devices
- Flexible installation
Specifications
| Compatibility | A9188-VENetwork Speakers:C1310-E; C1410; C1610-VEOnboard Cameras:F41; D4100-E Network Strobe Siren Fixed Box Cameras: M1055-L; F34; F41; F44; F9104-B; F9111; F9114; F9114-B; FA51; FA51-B; M1075-L; M1135 MK II; M1135-E Mk II; M1137 Mk II; M1137-E MK II; M2036-LE; M3058-PLVE; M3067-P; M3068-P; M3077-PLVE; M3085-V; M3086-V; M3088-V; M3115-LVE; M3116-LVE; M3215-LVE; M3216-LVE; M3905-R; M4216-LV; M4216-V; M4308-PLE; M5000-G; M5074; M5075; M5075-G; M5525-E; P1245; P1265; P1275; P1280-E; P1290-E; P1290-ENetwork I/O Relay Modules:A9161; P1375; P1375-E; P1377; P1377-LE; P1378; P1378-LE; P1455-LE; P1465-LE; P1467-LE; P1468-LE; P3255-LVE; P3265-LV; P3265-LVE; P3265-V; P3267-LV; P3267-LVE; P3268-LV; P3268-LVE; P3719-PLE; P3727-PLE; P3904-R MK II; P3905-R Mk II; P3925-LRE; P3925-R; P3935-LR; P3935-LRPTZ Cameras:M5000; P4705-PLVE; P4707-PLVE; P4707-PLVESpecialty Cameras:P9106-V; P5676-LE; P7304; P8815-2 3D People Counter; P9106-V; Q1615 Mk III; Q1615-LE Mk III; Q1656; Q1656-B; Q1656-BE; Q1656-BLE; Q1656-DLE; Q1656-LEFixed Bullet Cameras:M2035-LE; Q1700-LE; Q1715; Q1785-LE; Q1786-LE; Q1798-LEFixed Dome Cameras:M3057-PLVE Mk II; Q1941-E; Q1942-E; Q1951-E; Q1952-E; Q1961-TEVideo Encoders:M7104; Q3536-LVE; Q3538-LVE; Q3538-SLVE; Q6010-E; Q6074; Q6074-E; Q6075; Q6075-E; Q6078-E; Q6100-E; Q6135-LE; Q6225-LE; Q6315-LE; Q6318-LEPanoramic Cameras:M3057-PLVE Mk II; Q9216-SLVModular Cameras:; Q9216-SLVThermal Cameras:P1280-E |
|---|---|
| Depth | 188.0mm |
| Environmental Certification | IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78 |
| Environmentally Friendly | Yes |
| Form Factor | DIN Rail Mount; Shelf Mount; Wall Mount |
| Height | 43.2mm |
| Input Ports | 1 x Gigabit Ethernet |
| Input Voltage | 20V DC; 24V AC; 26.4V DC |
| Limited Warranty | 3-Year |
| Material | Plastic |
| Maximum Output Power | 90W |
| Mount Type | DIN Rail Mount; Shelf Mount; Wall Mount |
| Output Ports | Gigabit PoE |
| Package Contents |
|
| Product Series | 90 W Midspan |
| Product Type | PoE Injector |
| TAA Compliant | No |
| Width | 78.7mm |
| CE Marking | Yes |
| Colour | Black |
| Country of Origin | VN |
| Manufacturer | Axis Communications |
| Maximum Output Voltage | 56V |
| Operating Relative Humidity (H-H) | 0.95 |
| Operating Temperature (T-T) | -20-40°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| Security Features | IEC/EN 62368-1; IS 13252; KC-Mark; UL 62368-1 |
| Storage Temperature (T-T) | -40-75°C |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
AXIS 90W Midspan AC-DC, Plug-and-Play, Compatible with AXIS PoE Devices, 90W, (Replaces T8125) Product datasheet · 02209-001 · PDF Open datasheet
