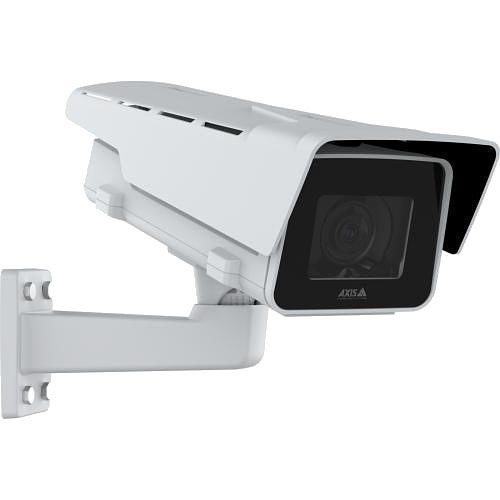

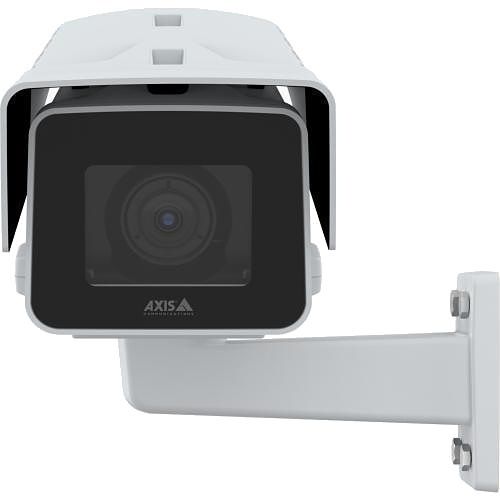

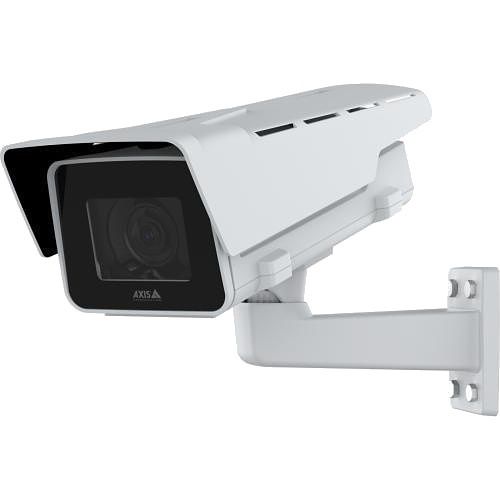

This robust camera delivers excellent image quality in 2 MP. It can handle temperatures from -40 °C to 60 °C (-40 °F to 140 °F). A front heater ensures the lens is free of ice and fog. And Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Scene profiles can be automatically optimized for specific scenarios. PoE and redundant DC power ensure flexible installation. With a DLPU, you can run advanced features and powerful analytics on the edge. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Excellent image quality in HDTV 1080p
-40 °C to 60 °C (-40 °F to 140 °F)
Robust and impact-resistant design
Analytics with deep learning
Built-in cybersecurity with Axis Edge Vault
Main Features
For remote surveillance needs, this network camera is best suited
Up to 1920 x 1080 video resolution
Features RGB CMOS sensor
13 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
f/1.4 maximum aperture for better light absorption and dependable, better-quality results
4.6x optical zoom for bringing the subject closer for maximum surveillance efficiency
Full HD recording format for stunning, vivid video results with maximum efficiency
P-iris camera iris provides dependable output to ensure maximum usability according to the lighting conditions and situations
Varifocal lens type to ensure maximum surveillance dependability and optimal performance
PoE power source type for your network camera better reliance and maximum energy dependability
Specifications
Connectivity Technology
Wired
Durability
Impact Resistant; Weather Resistant
Effective Camera Resolution
2MP
Environmental Certification
IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC/EN 60529 IP66; IEC/EN 60529 IP67; IEC/EN 62262 IK10; ISO 4892-2; NEMA 250 Type 4X; NEMA TS 2 (2.2.7-2.2.9)
Environmentally Friendly
Yes
Features
2D Noise Reduction; 3D Noise Reduction; Audio Detection; Day/Night; Defog; Forensic WDR; Noise Reduction; Privacy Masking; White Balance; Wide Dynamic Range
Field of View
Horizontal; Vertical
Focal Length
2.8-13mm
Form Factor
Box
Height
141.0mm
Image Sensor Type
CMOS
Indoor/Outdoor
Outdoor
Ingress Protection Rating
IP66; IP67
Input Voltage
10V DC; 28V DC
Length
404.0mm
Lens Mount Type
CS-Mount
Lens Type
Varifocal
Limited Warranty
5-Year
Material
Aluminium; Plastic
Maximum Aperture
f/1.4
Maximum Focal Length
13.0mm
Maximum Resolution
1920 x 1080
Maximum Video Resolution
1920 x 1080
Mount Type
Wall Mount
Network (RJ-45)
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
4x
Package Contents
P1385-E Box Camera
Installation Guide
Terminal Block Connectors
AXIS TQ1003-E Wall Mount
Owner Authentication Key
Packaged Quantity
1
Product Line
P
Product Series
P13
Product Type
Fixed cameras
Recording Formats
H.264; H.265 / HEVC
Storage Type
SD Card
TAA Compliant
Yes
Video Resolution
1280 x 720
Weight
2.28kg
Wide Dynamic Range
Yes
Width
93.0mm
Maximum Operating Temperature
60°C
Aperture
f/1.4
Colour
White
Country of Origin
PL
Impact Protection Rating
IK10
Lens Included
Yes
Longest Shutter Speed
2 Second
Manufacturer
Axis Communications
Maximum Frame Rate
60fps
Maximum Power Consumption
26W
Memory Card Supported
Yes
Minimum Focal Length
2.8mm
Minimum Illumination
0.01lux
Minimum Operating Temperature
-40°C
Number of Sensors
1
Operating Humidity
100%
Power over Ethernet (PoE)
Yes
Remote Management
Yes
RoHS Compliant
Compliant
Shortest Shutter Speed
1/37000 Second
Supported Network Protocols
IPv6
Video Formats
H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; H.265 Main Profile; Motion JPEG; Zipstream
