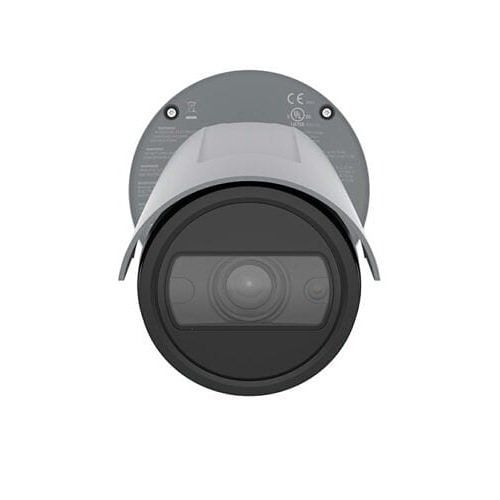

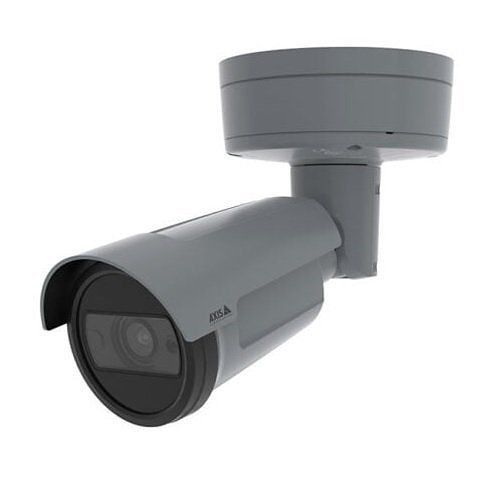

This explosion-protected camera is designed and certified for Zone and Division 2 according to international standards (ATEX, IECEx, cULus). Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics that run on the edge. Ideal for health and safety applications as well as operational efficiency, you can gain a deeper understanding and awareness by creating an advanced data-driven sensory network that can be integrated with existing sensors and systems. Including Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P1468-XLE ensures sharp, detailed 4K images under any light conditions. Furthermore, this impact-resistant, outdoor-ready camera includes built-in cybersecurity features.
Main Features
Certified for Zone and Division 2
Deep learning-based analytics
Detailed images in any light conditions
Excellent video quality with 4K at 60 fps
Impact- and weather-resistant
Specifications
Connectivity Technology
Wired
Diameter
132.0mm
Durability
Impact Resistant; Weather Resistant
Effective Camera Resolution
8MP
Environmental Certification
IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC/EN 60529 IP66; IEC/EN 60529 IP67; IEC/EN 62262 IK10; ISO 21207 (Method B); NEMA 250 Type 4X
Environmentally Friendly
Yes
Features
Audio Detection; Built-in IR LED; Day/Night; Human Detection; Motion Detection; PTZ; SD Card Local Storage; Shock Detection; Vehicle Detection; Video Management System; Wide Dynamic Range
Field of View
Horizontal; Vertical
Focal Length
6.2-12.9mm
Form Factor
Bullet
Image Sensor Type
CMOS
Indoor/Outdoor
Outdoor
Ingress Protection Rating
IP66; IP67
Input Voltage
28V DC
Lens Type
Varifocal
Limited Warranty
Not provided
Maximum Aperture
f/1.6
Maximum Focal Length
12.9mm
Maximum Resolution
1280 x 720
Maximum Video Resolution
3840 x 2160
Minimum Aperture
f/2.9
Mount Type
Conduit Box Mount; Corner Mount; Pole Mount
Network (RJ-45)
Yes
Night Vision
Yes
Night Vision Type
Infrared (IR)
Optical Zoom
2x
Product Line
P
Product Series
P14
Product Type
Explosion-protected cameras
Recording Formats
H.264; H.265 / HEVC
Storage Type
SD Card
TAA Compliant
Yes
Video Resolution
1280 x 720
Weight
1.30kg
Wide Dynamic Range
Yes
Maximum Operating Temperature
60°C
Aperture
f/1.6-2.9
Colour
Black
Country of Origin
PL
Impact Protection Rating
IK10
Lens Included
Yes
Longest Shutter Speed
2 Second
Manufacturer
Axis Communications
Maximum Frame Rate
60fps
Maximum Power Consumption
13W
Memory Card Supported
Yes
Minimum Focal Length
6.2mm
Minimum Illumination
0.00lux
Minimum Operating Temperature
-40°C
Night Vision Distance
40.00m
Operating Humidity
100%
Power over Ethernet (PoE)
Yes
Remote Management
Yes
RoHS Compliant
Compliant
Shortest Shutter Speed
1/66500 Second
Supported Network Protocols
IPv6
Video Formats
H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; H.265 Baseline Profile; H.265 High Profile; H.265 Main Profile; Motion JPEG; Zipstream
