Shop all Axis Communications

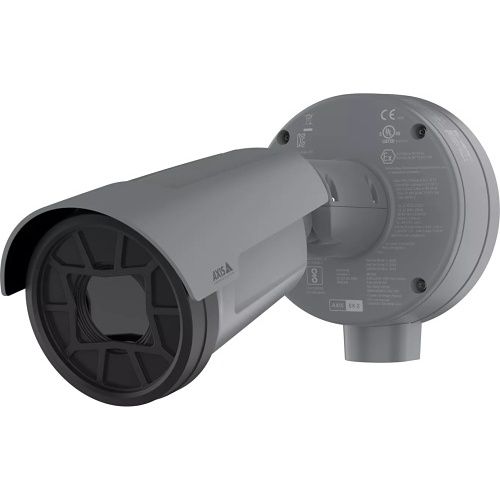

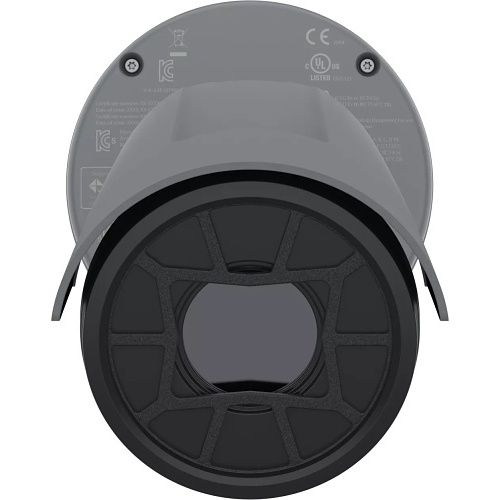

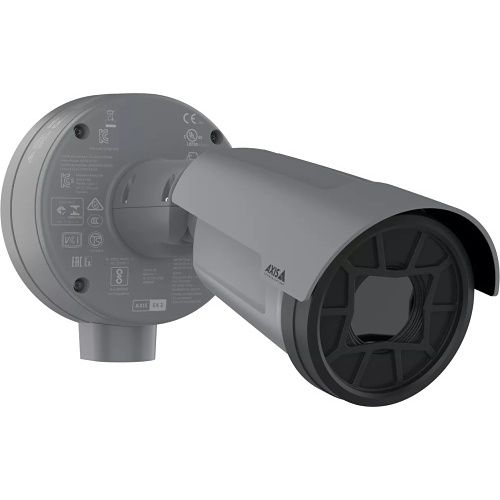

AXIS Q1961-XTE Explosion-Protected Thermal Camera, 7mm Lens, 30fps
SKU: 02535-001Brand: Axis Communications
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
AXIS Q1961-XTE Explosion-Protected Thermal Camera, 7mm Lens, 30fps
£8,014.90
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Thermometric for Remote Temperature Measuring
- Configurable Temperature Monitoring Areas
- Spot Temperature Reading
- Worldwide Hazardous Area Certifications
- Built-in cybersecurity with Axis Edge Vault
Frequently bought together
Axis Communications
AXIS Q1971-E Outdoor Thermal Camera, 13mm Fixed Lens, 30 fps, IK10, White
Sale price£3,365.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS Q1971-E Outdoor Thermal Camera, 19mm Fixed Lens, 30 fps, IK10, White
Sale price£3,365.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS Q1971-E Outdoor Thermal Camera, 19mm Fixed Lens, 8.3 fps, IK10, White
Sale price£3,365.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS Q1971-E Outdoor Thermal Camera, 25mm Fixed Lens, 30 fps, IK10, White
Sale price£3,932.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS Q1971-E Outdoor Thermal Camera, 35mm Fixed Lens, 30 fps, IK10, White
Sale price£4,605.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Certified for Zone and Division 2 hazardous locations, this explosion-protected, thermometric camera can remotely monitor temperatures and trigger temperature-based events. So, you can avoid unwanted downtime in production and plan for predictive maintenance.
Main Features
- Thermometric for Remote Temperature Measuring
- Configurable Temperature Monitoring Areas
- Spot Temperature Reading
- Worldwide Hazardous Area Certifications
- Built-in cybersecurity with Axis Edge Vault
Specifications
| Connectivity Technology | Wired |
|---|---|
| Durability | Dust Resistant; Gas Resistant; Impact Resistant; Waterproof |
| Environmental Certification | IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC/EN 60529 IP66; IEC/EN 60529 IP67; IEC/EN 62262 IK10; ISO 21207 (Method B); NEMA 250 Type 4X |
| Features | Built-in cybersecurity with Axis Edge Vault; Configurable Temperature Monitoring Areas; Spot Temperature Reading; Thermometric for Remote Temperature Measuring; Worldwide Hazardous Area Certifications |
| Field of View | Horizontal; Vertical |
| Focal Length | 7mm |
| Form Factor | Bullet |
| Image Sensor Type | Uncooled Microbolometer |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66; IP67 |
| Input Voltage | 10-28V DC |
| Lens Type | Fixed |
| Limited Warranty | Not provided |
| Maximum Aperture | f/1 |
| Maximum Focal Length | 7.0mm |
| Maximum Resolution | 1280 x 720 |
| Network (RJ-45) | Yes |
| Package Contents |
|
| Product Line | Q |
| Product Series | Q19 |
| Product Type | Explosion-protected cameras; Thermal cameras |
| Storage Type | SD Card |
| TAA Compliant | Yes |
| Maximum Operating Temperature | 60°C |
| Aperture | f/1.18 |
| Colour | Grey |
| Country of Origin | PL |
| Image Sensor Size | 384 x 288 |
| Impact Protection Rating | IK10 |
| Lens Included | Yes |
| Manufacturer | Axis Communications |
| Maximum Frame Rate | 30fps |
| Maximum Power Consumption | 13W |
| Maximum Thermal Focal Length | 7.11mm |
| Memory Card Supported | Yes |
| Minimum Focal Length | 7.0mm |
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 100% |
| Power over Ethernet (PoE) | Yes |
| Remote Management | Yes |
| RoHS Compliant | Out of Scope |
| Supported Network Protocols | IPv6 |
| Video Formats | H.264 / AVC; H.265 / HEVC; Motion JPEG |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
AXIS Q1961-XTE Explosion-Protected Thermal Camera, 7mm Lens, 30fps Product datasheet · 02535-001 · PDF Open datasheet
