AXIS TU8002-E Outdoor 90W PoE Injector Midspan, (Replaces T8124-E)
SKU: 02453-001Brand: Axis Communications
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
AXIS TU8002-E Outdoor 90W PoE Injector Midspan, (Replaces T8124-E)
£394.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Outdoor-ready, IP66/67- and NEMA TS2
- IEEE 802.3af/at/bt and High PoE
- 100 to 240V AC input
- -40 °C to 65 °C (-40 °F to 149 °F)
- Railway compliant EN 50121-4 and IEC 62236-4
Frequently bought together
Axis Communications
AXIS TU8004 100/240V AC PoE Injector with 90W PoE Budget Midspan, 230V PoE
Sale price£223.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TU9001 Control Board, (Replaces T8311)
Sale price£1,057.05
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TU9002 Joystick for Responsive and Accurate Control
Sale price£586.80
In stock
Axis Communications
AXIS TW1104 Magnet Mount, 5-Piece, Black
Sale price£469.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TX30 22.5" Stainless Steel Straps, for Poles 2-6", 2-Pack
Sale price£41.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

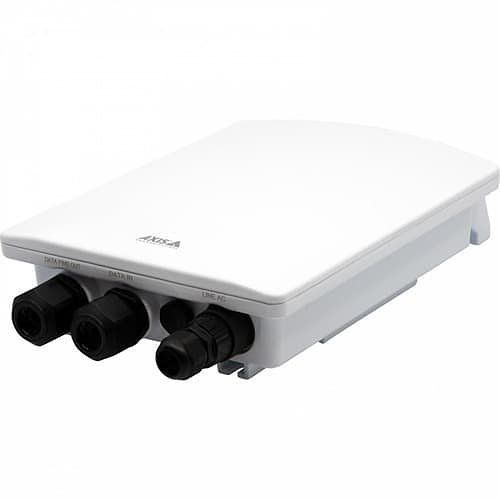

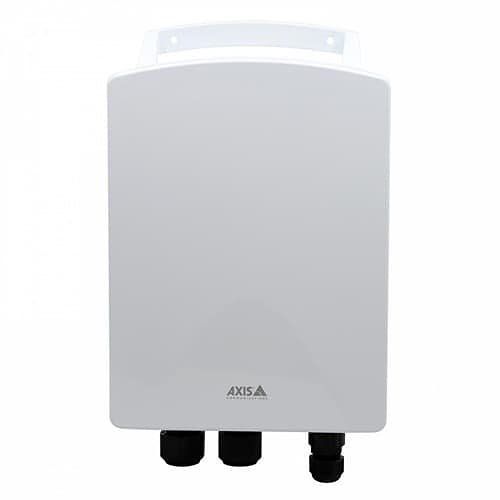

AXIS TU8002-E is an outdoor-ready midspan with IP66/67 and NEMA TS2 rating. It has an extended temperature range from -40 °C up to 65 °C (-40 °F to 149 °F) at a certain power output. The midspan offers surge protection up to 6kV for both the AC and the PoE ports, ensuring the equipment is protected from surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 90 W midspan is compatible with IEEE 802.3af/at/bt and High PoE supported devices.
Main Features
- Outdoor-ready, IP66/67- and NEMA TS2
- IEEE 802.3af/at/bt and High PoE
- 100 to 240V AC input
- -40 °C to 65 °C (-40 °F to 149 °F)
- Railway compliant EN 50121-4 and IEC 62236-4
Specifications
| Compatibility | A8207-VE MK II; A9161; A9188-VE; C1310-E; C1310-E MK II; C1410; C8110; C8210; D2110-VE; F9104-B; F9111; F9114; F9114-B; FA51; FA51-B; FA54; I8016-LVE; M1055-L; M1075-L; M1135 MK II; M1135-E Mk II; M1137 Mk II; M1137-E MK II; M2035-LE; M2036-LE; M3077-PLVE; M3085-V; M3086-V; M3088-V; M3115-LVE; M3116-LVE; M4215-LV; M4215-V; M4216-LV; M4216-V; M4218-LV; M4218-V; M4308-PLE; M4317-PLR; M4317-PLVE; M4318-PLR; M4318-PLVE; M4327-P; M4328-P; M5000; M5000-G; M5074; M5075; M5075-G; M5525-E; M5526-E; P1245; P1265; P1275; P1280-E; P1290-E; P1375; P1375-E; P1377; P1377-LE; P1378; P1378-LE; P1455-LE; P1465-LE; P1465-LE-3; P1467-LE; P1468-LE; P3255-LVE; P3265-LV; P3265-LVE; P3265-LVE-3; P3265-V; P3267-LV; P3267-LVE; P3268-LV; P3268-LVE; P3268-SLVE; P3725-PLE; P3727-PLE; P3737-PLE; P3738-PLE; P3818-PVE; P3904-R MK II; P3904-R MK II,P3905-R MK II; P3905-R Mk II; P3925-LRE; P3925-R; P3935-LR; P4705-PLVE; P4707-PLVE; P5654-E MK II; P5655-E; P9106-V; Q1615-LE Mk III; Q1656; Q1656-BE; Q1656-BLE; Q1656-DLE; Q1656-LE; Q1700-LE; Q1715; Q1785-LE; Q1786-LE; Q1798-LE; Q1808-LE; Q1941-E; Q1941-E PT; Q1942-E; Q1942-E PT; Q1951-E; Q1952-E; Q1961-E; Q2101-TE; Q3536-LVE; Q3538-LVE; Q3538-SLVE; Q3626-VE; Q3628-VE; Q6010-E; Q6074; Q6074-E; Q6075; Q6075-E; Q6078-E; Q6100-E; Q6135-LE; Q6255-LE; Q6315-LE; Q9216-SLV; Q9307-LV; W400 |
|---|---|
| Depth | 58.0mm |
| Environmental Certification | IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC/EN 60529 IP66; IEC/EN 60529 IP67; MIL-STD-810G (Method 501.5); NEMA 250 Type 4X; NEMA TS 2 (2.2.7-2.2.9) |
| Environmentally Friendly | Yes |
| Form Factor | Shelf Mount; Wall Mount |
| Height | 246.0mm |
| Ingress Protection Rating | IP66; IP67 |
| Input Ports | Gigabit Ethernet |
| Input Voltage | 100V AC; 240V AC |
| Limited Warranty | 3-Year |
| Material | Aluminum |
| Maximum Frequency | 60Hz |
| Maximum Output Power | 90W |
| Minimum Frequency | 50Hz |
| Mount Type | Pole Mount; Wall Mount |
| Output Ports | PoE |
| Product Line | T |
| Product Series | TU |
| Product Type | PoE Injector |
| Protection Type | Surge Protection |
| TAA Compliant | No |
| Width | 170.0mm |
| Colour | White |
| Country of Origin | VN |
| Manufacturer | Axis Communications |
| Maximum Output Voltage | 57V |
| Operating Relative Humidity (H-H) | 5-90% |
| Operating Temperature (T-T) | -40-65°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| Security Features | IEC/EN 62368-1; UL 62368-1 |
| Storage Temperature (T-T) | -40-70°C |
| WEEE Compliant | Compliant |
Downloads
Datasheet
AXIS TU8002-E Outdoor 90W PoE Injector Midspan, (Replaces T8124-E) Need the datasheet? Our team will email it to you. Request datasheet
