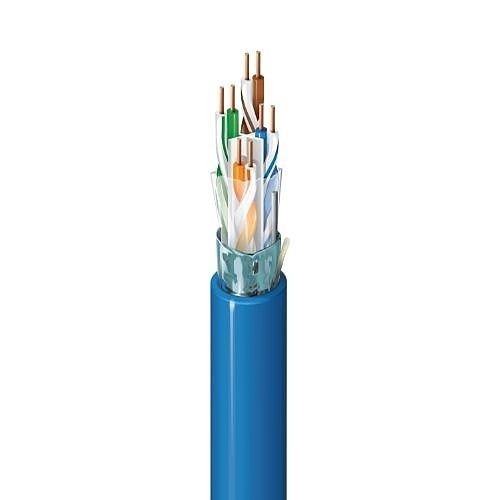

Category 6A Premise Horizontal Cable (550 MHz), 4-Pair, 23AWG Solid Bare Copper Conductors, U/UTP, Polyethylene Insulation, LSZH Jacket. Horizontal and building backbone cable; Supports current and future Category 6A and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.
Main Features
72V DC Voltage Rating
Operating Temperature from -30°C to 60°C
CPR Euroclass: Eca; CPR UKCA Class: Eca
Specifications
American Wire Gauge
23AWG
Cable Length
305m
Cable Type
Category 6a
CPR Euroclass Rating
Eca
Data Transfer Rate
10Gbps
Device Supported
Network Device
Features
Attenuation Crosstalk Ratio Far-end (ACR-F); Attenuation to Crosstalk Ratio (ACR); Bendable; Equal Level Far End Crosstalk (ELFEXT); Flame retardant; Halogen Free; Minimized Near-End Crosstalk (NEXT); PoE; Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF); Power-sum Alien Near End Crosstalk (PSANEXT); Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF); Power-sum Equal Level Far-End Crosstalk (PSELFEXT); Power-sum Near End Crosstalk (PSNEXT); Unshielded Twisted Pair (UTP)
