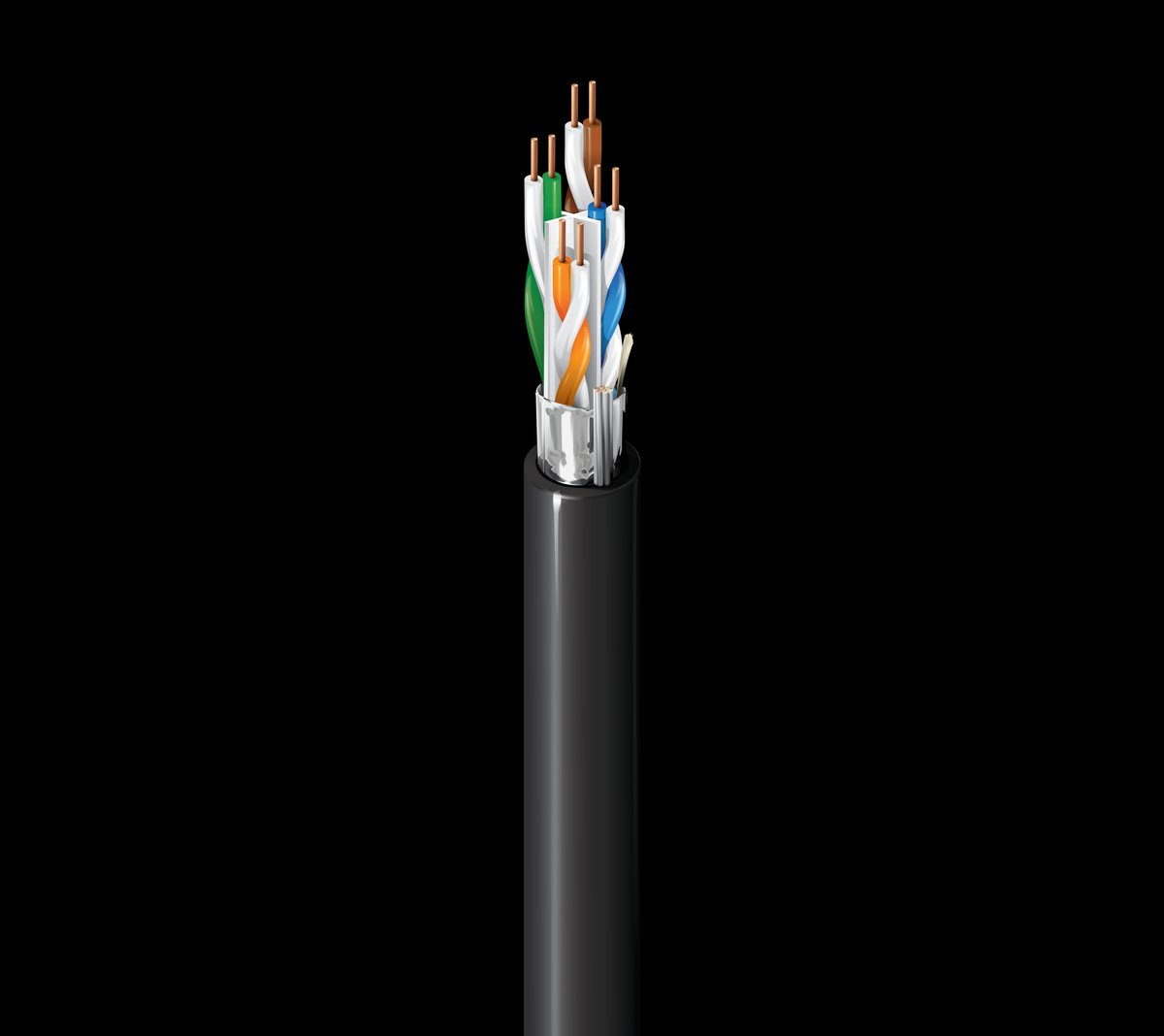

Belden 10GXW53 0081000 10GXW13 CAT6 F/UTP 4-Pair Cable, CMP, 10GXW Series, 1000' Reel, Gray
SKU: 10GXW53 0081000Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 10GXW53 0081000 10GXW13 CAT6 F/UTP 4-Pair Cable, CMP, 10GXW Series, 1000' Reel, Gray
£1,327.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 500MHz Bandwidth
- 23 AWG Solid Bare Copper Conductors
- F/UTP - Foil Shielded
- Plenum-CMP Rated
- Flamarrest PVC-LS Jacket
- Small Diameter (0.265")
Frequently bought together
Belden
Belden 10GXW53 0101000 10GXW13 CAT6 F/UTP 4-Pair Cable, CMP, 10GXW Series, 1000' Reel, Black
Sale price£1,327.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 10GXW53 D151000 10GXW13 CAT6 F/UTP 4-Pair Cable, CMP, 10GXW Series, 1000' Reel, Blue
Sale price£1,327.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 1303E.00305 CAT6A S/FTP CATSNAKE Cable, PVC, 305m, Black
Sale price£1,082.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 1303E.00500 CAT6a 24/4 Snake Cable S/FTP, 2xPVC Upjacketed, 500m Reel, Black
Sale price£1,775.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 1309A 0081000 14-2 Indoor Oxygen-Free BC Audio Cable, CM, 1000' Reel, Gray
Sale price£1,035.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Suitable for Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, and Noisy Environments.
Main Features
- 500MHz Bandwidth
- 23 AWG Solid Bare Copper Conductors
- F/UTP - Foil Shielded
- Plenum-CMP Rated
- Flamarrest PVC-LS Jacket
- Small Diameter (0.265")
- Supports PoE++ up to 100W
- 100% Shield Coverage
Specifications
| American Wire Gauge | 23AWG |
|---|---|
| Application/Usage | Ethernet up to 10GBASE-T; HDBaseT; Noisy Environments; PoE; PoE+; PoE++; Premise Horizontal Cable; Surveillance; Wi-Fi 5; Wi-Fi 6 |
| Cable Length | 304m |
| Cable Type | Ethernet |
| Conductor Count | 8 |
| Conductor Material | Bare Copper |
| Diameter | 6.7mm |
| Environmental Certification | REACH; RoHS; WEEE |
| Environmentally Friendly | Yes |
| Features | 100% Shield coverage; 23 AWG Solid Bare Copper Conductors; 500MHz Bandwidth; F/UTP - Foil Shielded; Flamarrest PVC-LS Jacket; Plenum-CMP Rated; Small Diameter (0.265"); Supports PoE++ up to 100W |
| Indoor/Outdoor | Indoor |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Material | Bare Copper |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Package Type | Reel/Spool |
| PoE | Yes |
| Product Line | 10GXW |
| Product Series | 10GXW |
| Product Type | Connector Cables |
| Shielding | Yes |
| Solid or Stranded | Solid |
| Voltage Rating | 300V |
| Weight | 16.78kg |
| Cable Style | F/UTP |
| Maximum Operating Temperature | 75°C |
| CE Marking | Yes |
| Certifications & Standards | ANSI/NEMA WC-66; ANSI/TIA-568.2-D Category 6A; CMP; CMP-LP (0.5A); EU Directive 2011/65/EU (RoHS 2); EU Directive 2012/19/EU (WEEE); FT6; IEC 61156-5; IEEE 802.3bt Type 1, Type 2, Type 3, Type 4; ISO/IEC 11801-1; NFPA 262 Plenum (UL 910); REACH; S-116-732 |
| Colour | Grey |
| Localization | English |
| Operating Temperature (T-T) | -20-75°C |
| RoHS Compliant | Compliant |
| UL Listed | Yes |
| WEEE Compliant | Out of Scope |
Datasheet
Belden 10GXW53 0081000 10GXW13 CAT6 F/UTP 4-Pair Cable, CMP, 10GXW Series, 1000' Reel, Gray Need the datasheet? Our team will email it to you. Request datasheet
