Name: Belden 1419A 0601000 24/2 Stranded TC RS232/422 Low Cap Cable, 1000', Chrome
Brand: Belden
SKU: 1419A 0601000
Price: 740.85 GBP
Availability: InStock

Belden 1419A 0601000 24/2 Stranded TC RS232/422 Low Cap Cable, 1000', Chrome

Roll over image to zoom in Click on image to zoom

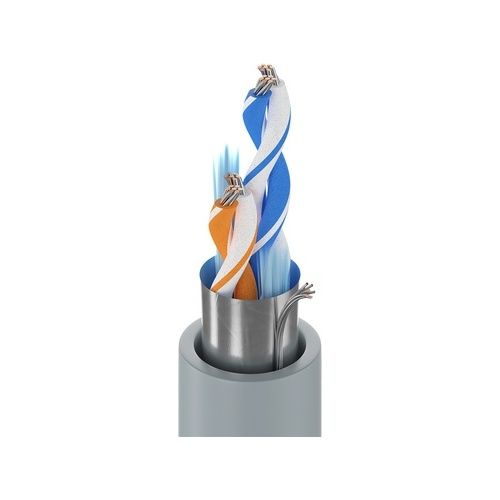

Computer EIA RS-232/422 cable, 2-pair, 24AWG stranded (7x32) tinned copper conductors, Datalene insulation, overall Beldfoil shield (100% coverage), 24AWG stranded tinned copper drain wire, PVC jacket.

Main Features

24/2 Stranded TC RS232/422 Cable
1000' Length for Extended Reach
Chrome PVC Jacket for Durability
Datalene Insulation for Enhanced Performance
Overall Beldfoil Shield for 100% Coverage
24AWG Stranded Tinned Copper Conductors
Ideal for Computer EIA RS-232/422 Applications

Specifications

American Wire Gauge	24AWG
Cable Length	305m
Device Supported	Audio Device
Environmental Certification	RoHS 2; WEEE
Impedance	100Ohm
Jacket Type	Standard
Limited Warranty	10-Year
Material	Polyethylene; PVC; Tinned Copper
Number of Pairs	2
Product Series	Data Cables
Product Type	Multi-Conductor Cable
Shielding	Yes
Solid or Stranded	Stranded
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Manufacturer Brochure
