Name: Belden 1855A 0091000 Serial Digital Interface Coaxial MiniRG59, Electrical Communication Application, 305m, PVC, White
Brand: Belden
SKU: 1855A 0091000
Price: 599.05 GBP
Availability: InStock

Belden 1855A 0091000 Serial Digital Interface Coaxial MiniRG59, Electrical Communication Application, 305m, PVC, White

Roll over image to zoom in Click on image to zoom

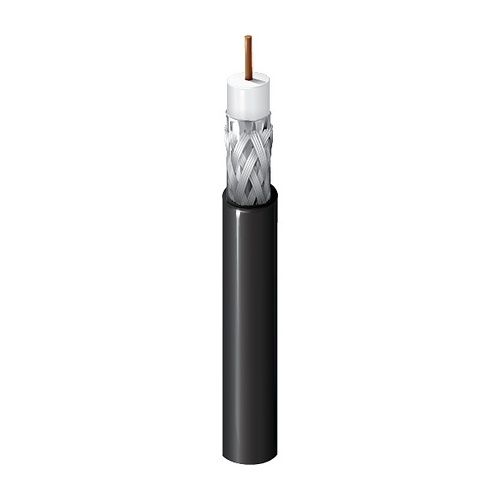

75 Ohm SDI Coax, Mini RG-59, 23AWG solid bare copper conductor, PE insulation, foil 95% tinned copper braid shield, PVC jacket, CMR.

Main Features

75 Ohm SDI Coax for reliable signal transmission
Mini RG-59 with 23AWG solid bare copper conductor
PE insulation for enhanced durability
Foil 95% tinned copper braid shield for protection
PVC jacket for flexibility and ease of installation
305m length suitable for extensive setups
Ideal for electrical communication applications

Specifications

American Wire Gauge	23AWG
Application/Usage	6 Gb/s UHDTV; Digital Video; HD-SDI 1080p
Cable Length	305m
Cable Type	Coaxial
Conductor Count	1
Conductor Material	Bare Copper
CPR Euroclass Rating	Eca
Device Supported	Video Device
Environmental Certification	REACH; RoHS 2; WEEE
Impedance	75Ohm
Indoor/Outdoor	Indoor; Outdoor
Insulation Material	PE
Jacket Material	PVC
Jacket Type	Standard
Limited Warranty	10-Year
Material	Bare Copper; PVC
Number of Conductors	1
Package Type	Reel/Spool
Product Series	Coaxial
Product Type	Video Cable
Shielding	Yes
Solid or Stranded	Solid
Colour	White
Fibre Category	OS2
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	-30-75°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
