Name: Belden 558ALW 0001000 16-Conductor Access Control Cable, 22/3, 18-4, 22-6, Shielded, LSZH Banana Peel, CMG-LS, 305m
Brand: Belden
SKU: 558ALW 0001000
Price: 2683.10 GBP
Availability: InStock

Belden 558ALW 0001000 16-Conductor Access Control Cable, 22/3, 18-4, 22-6, Shielded, LSZH Banana Peel, CMG-LS, 305m

Roll over image to zoom in Click on image to zoom

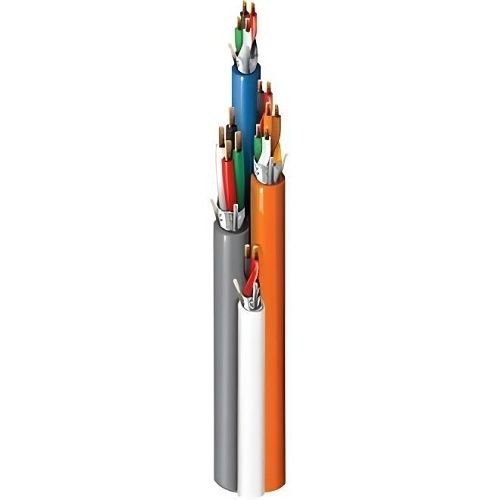

Access control cable, riser-CMR, 3-22AWG pairs, 4-18AWG conductors, 4-22AWG conductors, 2-22AWG conductors. All conductors stranded bare copper with polyolefin insulation. Each cable has overall Beldfoil shield and LSZH jacket, banana peel. No overall jacket.

Main Features

16-Conductor access control cable
Shielded with LSZH Banana peel
CMG-LS Rated for safety
305m Length for extensive coverage
Stranded Bare Copper conductors
Polyolefin Insulation for durability
Beldfoil shield for enhanced protection

Specifications

Environmental Certification	CE; China RoHS 2; UL
Environmentally Friendly	Yes
Limited Warranty	10-Year
RoHS Compliant	Compliant
WEEE Compliant	Compliant
