Name: Belden 6381MD 0091000 24/1 + 18/2 OSDP Reader Cable, Stranded TC, Shielded, CMP, 305m, White
Brand: Belden
SKU: 6381MD 0091000
Price: 852.85 GBP
Availability: InStock

Belden 6381MD 0091000 24/1 + 18/2 OSDP Reader Cable, Stranded TC, Shielded, CMP, 305m, White

Roll over image to zoom in Click on image to zoom

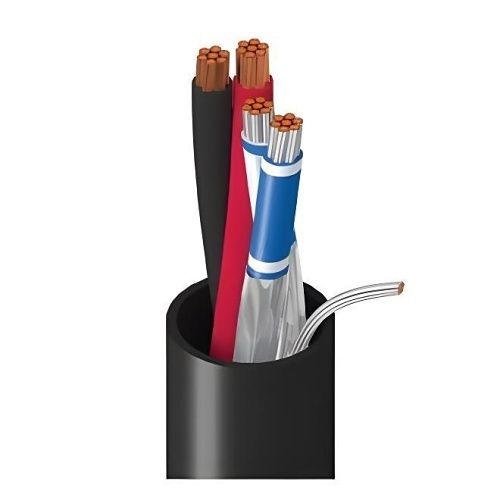

OSDP Reader Cable, 1-pair 24AWG stranded (7x32) tinned copper (data) with foam FEP insulation, Beldfoil shield with drain, 2-conductor 18AWG stranded (7x26) Bare copper conductor (power) plenum, flamarrest.

Main Features

Composite cable with 24 AWG shielded data pairs and 18 AWG power conductors
Ideal for access control systems using OSDP (Open Supervised Device Protocol)
Shielded data pairs for protection against electromagnetic interference (EMI)
CMP (plenum) rated for use in air handling spaces
Ensures reliable and secure connectivity
Enhances signal integrity and performance
Suitable for both commercial and residential applications
Durable construction for long-lasting use

Specifications

American Wire Gauge	18AWG; 24AWG
Cable Rating	Plenum
Limited Warranty	10-Year
Shielding	Yes
RoHS Compliant	Compliant
WEEE Compliant	Compliant
