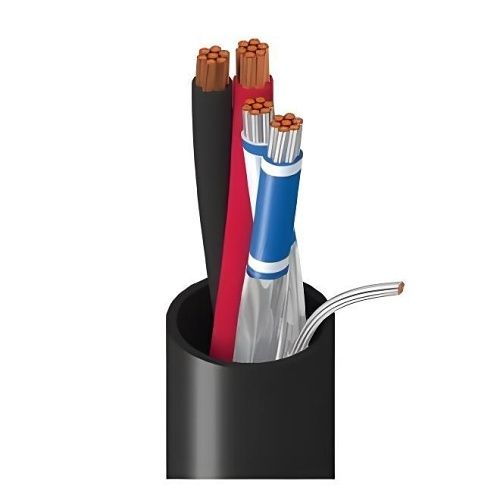

Name: Belden 6381MD 0101000 24/1 + 18/2 OSDP Reader Cable, Stranded TC, Shielded with Drain, CMP, 305m, Black
Brand: Belden
SKU: 6381MD 0101000
Price: 853.55 GBP
Availability: InStock

Belden 6381MD 0101000 24/1 + 18/2 OSDP Reader Cable, Stranded TC, Shielded with Drain, CMP, 305m, Black

Roll over image to zoom in Click on image to zoom

OSDP Reader Cable, 1-pair 24AWG stranded (7x32) tinned copper (data) with foam FEP insulation, Beldfoil shield with drain, 2-conductor 18AWG stranded (7x26) Bare copper conductor (power) plenum, flamarrest.

Main Features

OSDP Reader cable for secure data transmission
1-Pair 24AWG stranded tinned copper for data
Foam FEP insulation for enhanced durability
Beldfoil shield with drain for protection
2-Conductor 18AWG stranded bare copper for power
Plenum-rated for safety in air spaces
Flamarrest for fire resistance
305m Length for extensive reach
Black color for professional appearance

Specifications

American Wire Gauge	24AWG
Application/Usage	Access Control; OSDP Readers; RS-485; Serial Data
Cable Rating	Plenum
Conductor Material	Bare Copper
Indoor/Outdoor	Indoor
Insulation Material	FEP
Jacket Material	Flamarrest; PVC
Limited Warranty	10-Year
Number of Conductors	2
Number of Pairs	1
Shielding	Yes
Solid or Stranded	Stranded
Operating Temperature (T-T)	-20-60°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
