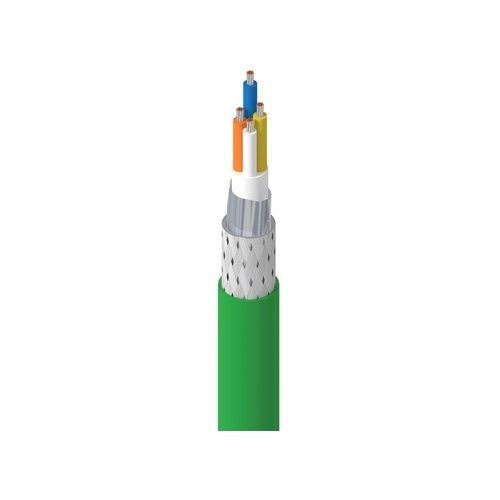

Name: Belden 70007NH.01305 CAT5e 22/2 DataTuff Stranded Cable, TC, SF/UTP, PROFINET Type B, 305m Reel, Green
Brand: Belden
SKU: 70007NH.01305
Price: 499.20 GBP
Availability: InStock

Belden 70007NH.01305 CAT5e 22/2 DataTuff Stranded Cable, TC, SF/UTP, PROFINET Type B, 305m Reel, Green

Roll over image to zoom in Click on image to zoom

DataTuff 5E, 1 Quad 22AWG Stranded Tinned Copper, Polyethylene insulation, SF/UTP Overall Braid Foil shielding, LSZH / FRNC jacket, PROFINET Type B, UL AWM 21286.

Main Features

CAT5e 22/2 DataTuff Stranded Cable
305m Reel for extended reach
Green color for easy identification
PROFINET Type B compliant
SF/UTP Overall Braid Foil shielding
LSZH / FRNC jacket for safety
Stranded Tinned Copper for durability

Specifications

American Wire Gauge	22AWG
Cable Length	305m
Cable Type	Category 5e
Compatibility	PROFINET Cat5e, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication
CPR Euroclass Rating	Eca
Device Supported	IP cameras and Devices
Environmentally Friendly	Yes
Impedance	100Ohm
Insulation Material	PE
Jacket Type	Halogen-Free Jacket
Limited Warranty	10-Year
Material	LSZH
Number of Conductors	4
Number of Pairs	2
Package Type	Reel/Spool
Product Series	Category Cable
Product Type	Ethernet Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	Green
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Belden 70007NH.01305 CAT5e 22/2 DataTuff Stranded Cable, TC, SF/UTP, PROFINET Type B, 305m Reel, Green
