Shop all Belden

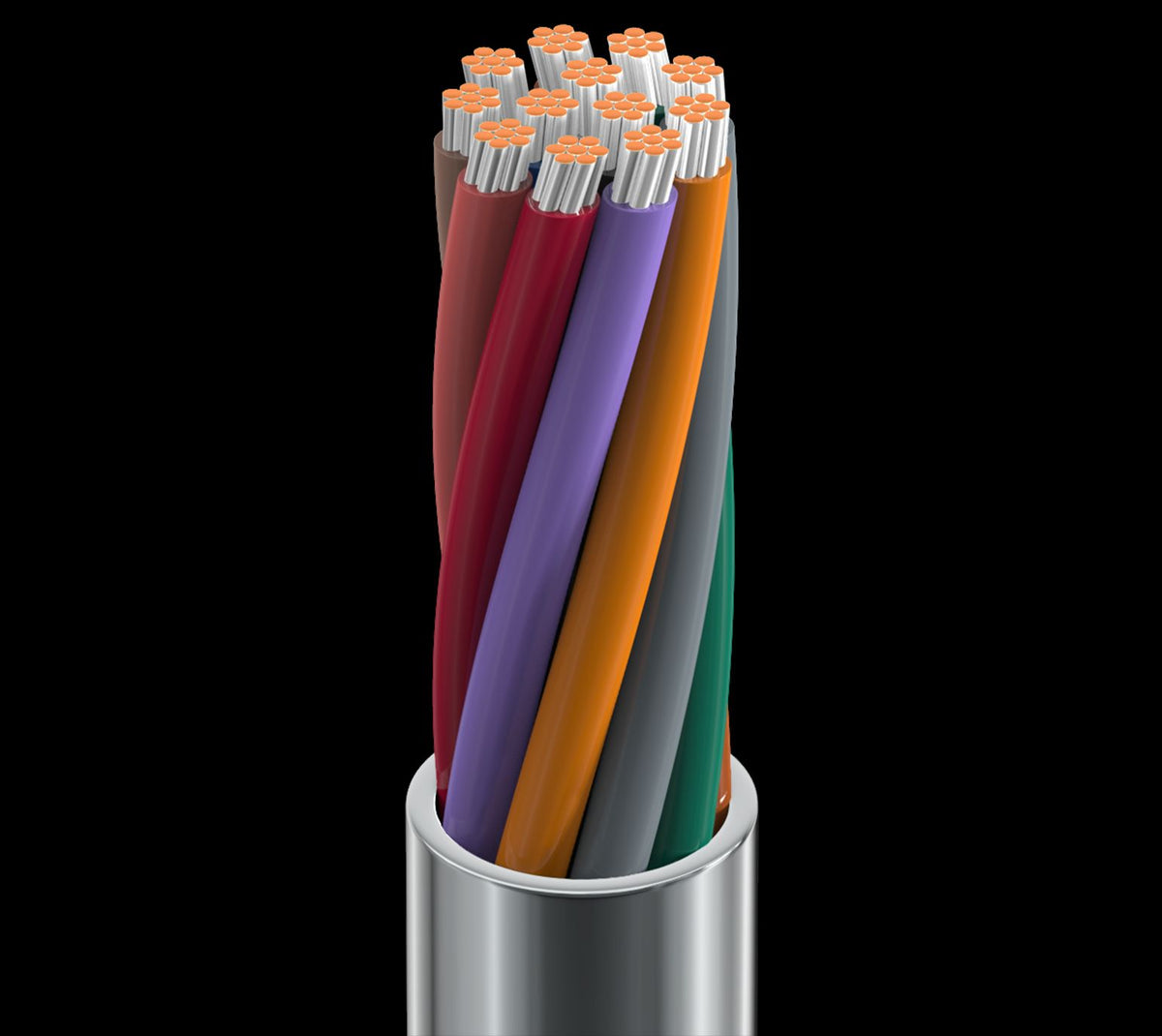

Belden 8457 060100 22-12 Electronic Cable, 7x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 100' Reel, Chrome
SKU: 8457 060100Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 8457 060100 22-12 Electronic Cable, 7x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 100' Reel, Chrome
£123.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 12-Conductors
- 22 AWG Stranding (7x30)
- Tinned Copper Conductors
- PVC Insulation
- PVC Outer Jacket
- CMG Rated
Frequently bought together
Belden
Belden 8461 0601000 Data Cable, 2-Conductor PVC, Enhanced Category, 305m, Chrome, White
Sale price£589.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8461ZH 0101000 2-Conductor Data Cable, Low Smoke Zero Halogen, Enhanced Category, 305m, Black
Sale price£714.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8466 060500 18-12 Electronic Cable, 19x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 500' Reel, Chrome
Sale price£1,862.45
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8470 0631000 16/2 Figure 8 Speaker Cable, 305m, Black, (Replaces 8470 063500)
Sale price£642.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8470 063U1000 16-2 Stranded TC High-Conductivity Copper Speaker Cable, Unshielded, PVC Insulation, 1000', Black and White
Sale price£642.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The Belden 8457 060100 electronic cable is designed for reliable electronic applications requiring durable and flexible wiring solutions. It features 12 conductors with 22 AWG stranding (7x30) made from tinned copper to provide excellent conductivity and corrosion resistance. The cable is insulated and jacketed with PVC, rated CMG and certified to CPR Euroclass Eca and UL AWM Style 2576 standards. It operates reliably within a temperature range of -20°C to 80°C and features a distinctive chrome outer jacket for easy identification and aesthetic appeal.
Main Features
- 12-Conductors
- 22 AWG Stranding (7x30)
- Tinned Copper Conductors
- PVC Insulation
- PVC Outer Jacket
- CMG Rated
- CPR Euroclass Eca
- UL AWM Style 2576
- Operating Temperature -20°C to +80°C
- Chrome Jacket Color
Specifications
| American Wire Gauge | 22AWG |
|---|---|
| Amperage | 4.2A |
| Application/Usage | ...); low voltage control (24v; …); line level audio; voice communications; panel wiring; 0-10v; low voltage analog signals (4-20ma |
| Cable Length | 30m |
| Cable Rating | CMG; UL AWM Style 2576 |
| Cable Type | Electronic Cable |
| Conductor Count | 12 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Eca |
| Current Rating | 4A |
| Diameter | 6.9mm |
| Environmental Certification | EU Directive 2011/65/EU (RoHS 2); EU Directive 2012/19/EU (WEEE) |
| Environmentally Friendly | Yes |
| Features | 12 Conductors; 22 AWG Stranding (7x30); Chrome Jacket Color; CMG Rated; CPR Euroclass Eca; Operating Temperature -20°C to +80°C; PVC Insulation; PVC Outer Jacket; Tinned Copper Conductors; UL AWM Style 2576 |
| Indoor/Outdoor | Indoor |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Length | 30.5m |
| Material | PVC; Tinned Copper |
| Maximum Operating Voltage | 150V |
| Number of Conductors | 12 |
| Package Type | Reel/Spool |
| Product Line | Classics |
| Product Series | Multi-Conductor |
| Product Type | Multi-Conductor Cable |
| Shielding | No |
| Solid or Stranded | Stranded |
| Thickness | 0mm |
| Voltage Rating | 150V |
| Weight | 2.13kg |
| Maximum Operating Temperature | 80°C |
| CE Marking | Yes |
| Certifications & Standards | Article 800; AWM 2576; CEC/C(UL) CMG; China RoHS II (GB/T 26572-2011); FT4; IEC 60332-1-2; UKCA Mark; UL 1685 FT4 Loading |
| Colour | Silver |
| Localization | English |
| Operating Temperature (T-T) | -20-80°C |
| Operating Voltage | 150V |
| RoHS Compliant | Compliant |
| Temperature | 80°C |
| UKCA Marking | Yes |
| UL Listed | Yes |
| WEEE Compliant | Out of Scope |
