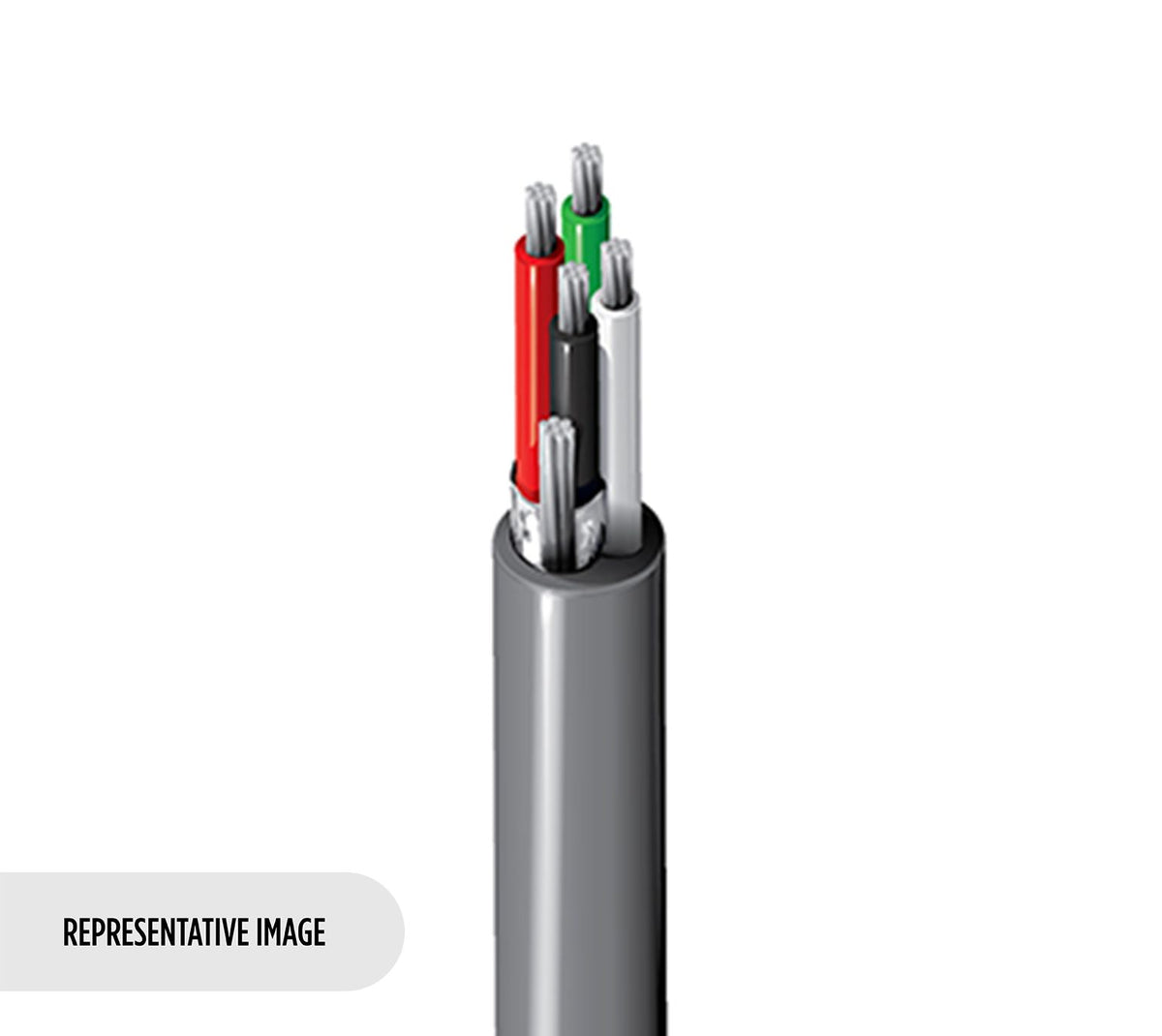

Belden 8763 0601000 20/1 Stranded (7x28) TC Cable, Polyethylene Insulation, Conductors Cabled, Beldfoil Shield, PVC Jacket, 1000' Reel, Chrome
SKU: 8763 0601000Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 8763 0601000 20/1 Stranded (7x28) TC Cable, Polyethylene Insulation, Conductors Cabled, Beldfoil Shield, PVC Jacket, 1000' Reel, Chrome
£811.75
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1-Pair 20AWG Stranded (7x28) TC
- 1-Conductor 20AWG Stranded (7x28) TC
- Polyethylene insulation
- Beldfoil shield (100% coverage)
- 20AWG Stranded TC drain wire
- PVC Jacket
Frequently bought together
Belden
Belden 8769 0601000 22/19 Audio, Control and Instrument Pair Cable, TC, Polypropylene Insulation, Individually Shielded Pairs with Beldfoil, Overall PVC Jacket, CM, 305m Reel, Chrome
Sale price£8,732.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8770.01305 18-3 Stranded Electronic Cable, TC, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM, 305m Reel, Chrome
Sale price£890.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8770ELW.00305 18-3 Stranded Electronic Cable, TC, Polyolefin Insulation, OS, LSZH / FRNC Jacket, 300V, CCA, 305m
Sale price£1,117.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8770NH.00305 18-3 Stranded Electronic Cable, TC, Polyolefin Insulation, OS, LSZH / FRNC Jacket, 300V, 305m Reel, Chrome
Sale price£1,064.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8771 060U1000 22-3 Stranded Electronic Cable, TC, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM, 305m UnReel, Chrome
Sale price£528.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The Belden 8763 0601000 is a TC cable designed for reliable electrical signal transmission. It features 1-pair 20 AWG stranded conductors cabled with polyethylene insulation, providing durability and flexibility. The cable includes a 100% coverage Beldfoil shield and a 20 AWG stranded TC drain wire for enhanced shielding. Its PVC jacket offers sunlight resistance, and it meets CPR Euroclass Eca standards with an operating temperature range from -30°C to +90°C and a 350V voltage rating. The cable is supplied on a 1000' reel, suitable for various installation environments.
Main Features
- 1-Pair 20AWG Stranded (7x28) TC
- 1-Conductor 20AWG Stranded (7x28) TC
- Polyethylene insulation
- Beldfoil shield (100% coverage)
- 20AWG Stranded TC drain wire
- PVC Jacket
- Sunlight Resistance
- CPR Euroclass - Eca
- Operating Temperature -30°C To +90°C
- 350V Voltage Rating
Specifications
| American Wire Gauge | 20AWG |
|---|---|
| Amperage | 3.9A |
| Application/Usage | ...); low voltage digital control (24v; …); Line Level Audio; Computer Communication; Panel Wiring; 0-10v; low voltage analog signals (4-20ma |
| Cable Length | 305m |
| Cable Type | Multi-Conductor Cable |
| Conductor Count | 3 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Eca |
| Current Rating | 4A |
| Diameter | 5.3mm |
| Environmental Certification | REACH; RoHS; WEEE |
| Environmentally Friendly | Yes |
| Features | 1 Conductor 20 AWG stranded (7x28) TC; 1 Pair 20 AWG stranded (7x28) TC; 20 AWG stranded TC drain wire; 350 V Voltage Rating; Beldfoil Shield (100% Coverage); CPR Euroclass - Eca; Operating Temperature -30°C To +90°C; Polyethylene Insulation; PVC jacket; Sunlight Resistance |
| Impedance | 62Ohm |
| Insulation Material | PE (Polyethylene) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Length | 305.0m |
| Material | Aluminum; Polyester; Polyethylene; Polyvinyl Chloride; Tinned Copper |
| Maximum Operating Voltage | 350V |
| Number of Conductors | 1 |
| Number of Pairs | 1 |
| Package Type | Reel/Spool |
| Product Series | 8763 |
| Product Type | Connector Cables |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Voltage Rating | 350V |
| Weight | 11.30kg |
| Maximum Operating Temperature | 90°C |
| CE Marking | Yes |
| Certifications & Standards | China RoHS II (GB/T 26572-2011); EU Directive 2011/65/EU (RoHS 2); EU Directive 2012/19/EU (WEEE); EU Directive 2015/863/EU (RoHS 2 amendment) |
| Colour | Silver |
| Localization | English |
| Operating Temperature (T-T) | -30-90°C |
| Operating Voltage | 350V |
| RoHS Compliant | Compliant |
| UKCA Marking | Yes |
| WEEE Compliant | Out of Scope |
Datasheet
Belden 8763 0601000 20/1 Stranded (7x28) TC Cable, Polyethylene Insulation, Conductors Cabled, Beldfoil Shield, PVC Jacket, 1000' Reel, Chrome Need the datasheet? Our team will email it to you. Request datasheet
