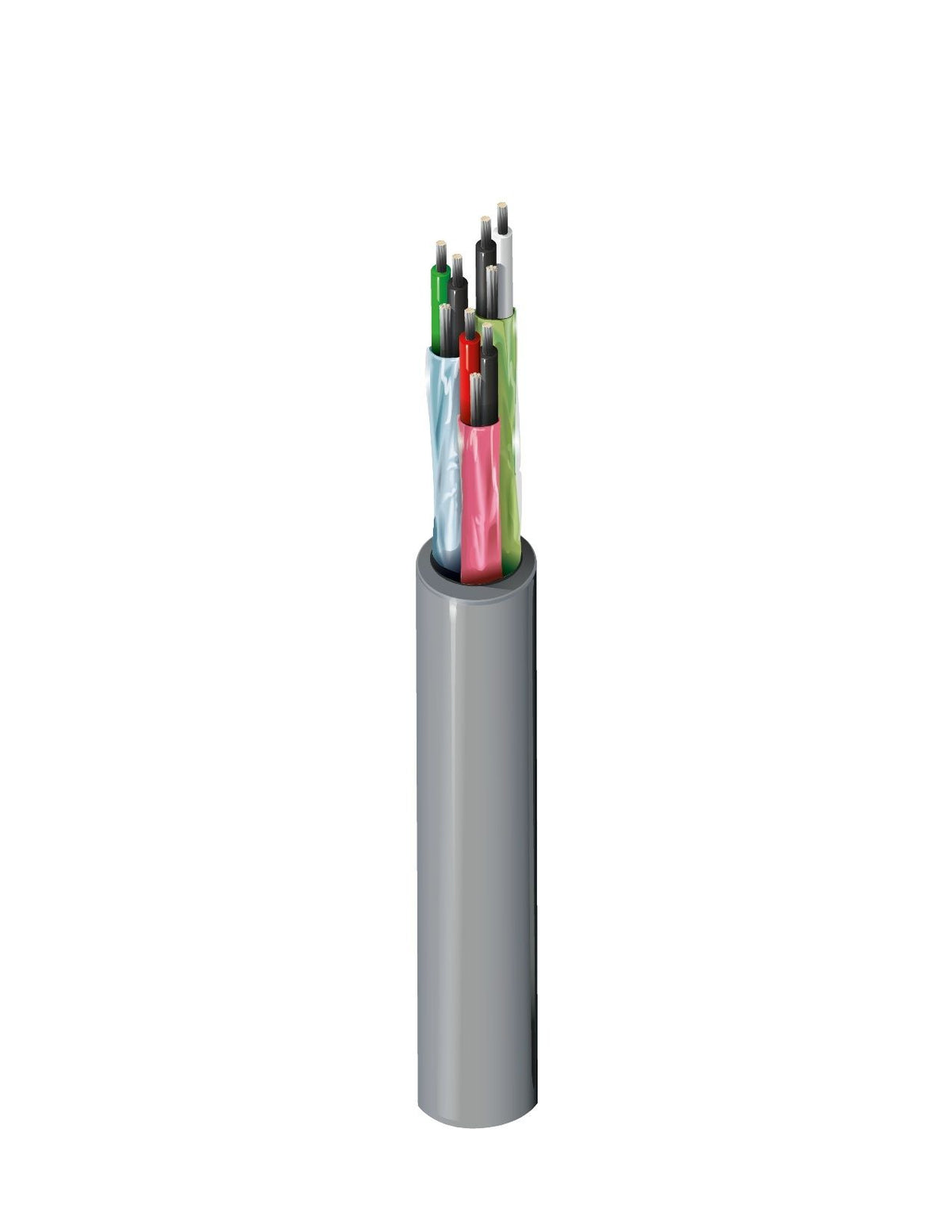

Belden 9773 060500 18AWG Audio, Control and Instrument Cable, Stranded (19x30) Tinned Copper Conductors, Polypropylene Insulation, PVC Jacket, 500' Reel, Chrome
SKU: 9773 060500Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 9773 060500 18AWG Audio, Control and Instrument Cable, Stranded (19x30) Tinned Copper Conductors, Polypropylene Insulation, PVC Jacket, 500' Reel, Chrome
£1,218.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 18AWG Stranded (19x30) tinned copper conductors
- Polypropylene insulation
- 3-Twisted Pairs
- Individually shielded with Beldfoil (100% coverage)
- 20AWG Stranded tinned copper drain wire
- PVC Jacket
Frequently bought together
Belden
Belden 9773MN 004100 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, 30m, Yellow
Sale price£180.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9773MN 0061000 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, Lite Blue, 30m
Sale price£1,833.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9773MN 008100 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, Grey, 30m
Sale price£180.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9773MN 0081000 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, Grey, 305m
Sale price£1,833.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9829 060500 22/2 O/A Foil+Braid ECA PVC Data Cable, 152m, Chrome
Sale price£877.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Audio, Control and Instrument Cable, 18AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 3 twisted pairs, individually shielded with Beldfoil (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Main Features
- 18AWG Stranded (19x30) tinned copper conductors
- Polypropylene insulation
- 3-Twisted Pairs
- Individually shielded with Beldfoil (100% coverage)
- 20AWG Stranded tinned copper drain wire
- PVC Jacket
- UL 1685 FT4 Loading
- CPR Euroclass - Eca
- 3.6A per Conductor at 25°C
- Operating Temperature -20°C to +80°C
Specifications
| American Wire Gauge | 18AWG |
|---|---|
| Amperage | 3.6A |
| Application/Usage | ...); low voltage digital control (24v; …); Line Level Audio; Computer Communication; Panel Wiring; 0-10v; low voltage analog signals (4-20ma |
| Cable Length | 152m |
| Cable Type | Multi-Pair Cable |
| Conductor Count | 6 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Eca |
| Current Rating | 4A |
| Diameter | 10.3mm |
| Environmental Certification | EU Directive 2011/65/EU (RoHS 2); EU Directive 2012/19/EU (WEEE); EU Directive 2015/863/EU (RoHS 2 amendment) |
| Features | 18 AWG stranded (19x30) tinned copper conductors; 20 AWG Stranded Tinned Copper Drain Wire; 3 twisted pairs; 3.6 Amps per Conductor at 25°C; CPR Euroclass - Eca; Individually shielded with Beldfoil (100% coverage); Operating Temperature -20°C to +80°C; Polypropylene insulation; PVC jacket; UL 1685 FT4 Loading |
| Impedance | 50Ohm |
| Indoor/Outdoor | Indoor |
| Insulation Material | PP (Polypropylene) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Length | 152.0m |
| Material | Aluminum; Polyester; Polypropylene; Polyvinyl Chloride; Tinned Copper |
| Maximum Operating Voltage | 300V |
| Number of Conductors | 6 |
| Number of Pairs | 3 |
| Package Type | Reel/Spool |
| Product Line | Classics |
| Product Series | Multi-Pair Cable |
| Product Type | Multi-Pair Cable |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Thickness | 0mm |
| Voltage Rating | 300V |
| Weight | 18.82kg |
| Maximum Operating Temperature | 80°C |
| Additional Information | C - CRATE REEL PUT-UP. |
| CE Marking | Yes |
| Certifications & Standards | Article 800, CM; AWM 2919; China RoHS II (GB/T 26572-2011); IEC 60332-1-2; UKCA Mark; UL 1685 FT4 Loading |
| Colour | Silver |
| Localization | English |
| Operating Temperature (T-T) | -20-80°C |
| Operating Voltage | 300V |
| RoHS Compliant | Compliant |
| Temperature | 80°C |
| UKCA Marking | Yes |
| UL Listed | Yes |
| WEEE Compliant | Out of Scope |
