| American Wire Gauge |
24AWG |
| Amperage |
2.1A |
| Application/Usage |
Computer communications; Line Level Audio; Low Voltage Analog Signals (4-20ma, 0-10V); Low Voltage Digital Control (24V); panel wiring; RS-485, POS; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc |
| Cable Length |
1000m |
| Cable Rating |
CM |
| Cable Type |
RS-485 |
| Compatibility |
HMIs; motors; PLCs; RTU; SCADA; VFDs |
| Conductor Count |
4 |
| Conductor Material |
Tinned Copper |
| Current Rating |
2A |
| Diameter |
8.4mm |
| Environmental Certification |
Halogen Free; REACH; RoHS 2 |
| Environmentally Friendly |
Yes |
| Features |

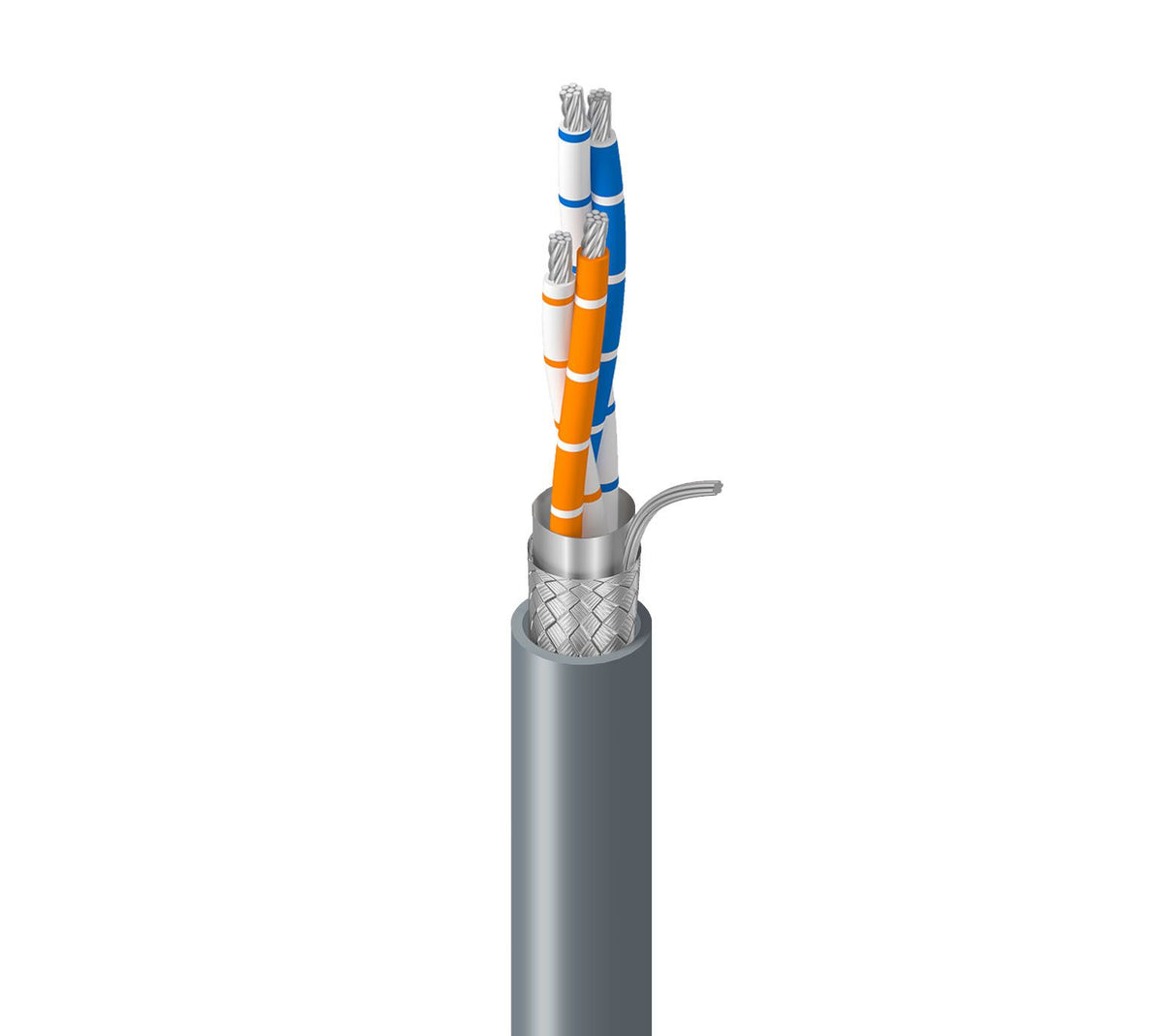

120 Ohm Nominal Characteristic Impedance; 24 AWG stranded (7x32) tinned copper conductors; CPR Euroclass B2ca-s1a,d1,a1 compliance; Low Smoke Zero Halogen (LSZH) Flame Retardant jacket; Operating temperature range of -45°C to +80°C; Overall Beldfoil and tinned copper braid shield (90% coverage); Polyethylene insulation with color-coded ring marking; Suitable for DMX-512 applications; Sunlight and Oil Resistant; Tinned copper drain wire included |
| Impedance |
120Ohm |
| Indoor/Outdoor |
Indoor; Outdoor |
| Insulation Material |
PE (Polyethylene) |
| Jacket Material |
LSZH (Low Smoke Zero Halogen) |
| Length |
1000.0m |
| Material |
Aluminum; Low Smoke Zero Halogen; Polyester; Polyethylene; Tinned Copper |
| Number of Conductors |
4 |
| Number of Pairs |
2 |
| Package Type |
Reel/Spool |
| Product Type |
Multi-Pair Cable |
| Shielding |
Yes |
| Solid or Stranded |
Stranded |
| Voltage Rating |
300V |
| Weight |
96.00kg |
| Maximum Operating Temperature |
80°C |
| Additional Information |
Active Status; Global Availability |
| Certifications & Standards |
Article 800; AWM 20851; DMX-512; EN 50290-2-20; EU CE Mark; IEC 60754-1; IEC 60754-2; IEC 61034-2; IEC 62821-1; UKCA Mark |
| Colour |
Silver |
| Localization |
English |
| Operating Temperature (T-T) |
-45-80°C |
| Operating Voltage |
300V |
| RoHS Compliant |
Compliant |
| UKCA Marking |
Yes |
| UL Listed |
Yes |
| WEEE Compliant |
Out of Scope |
