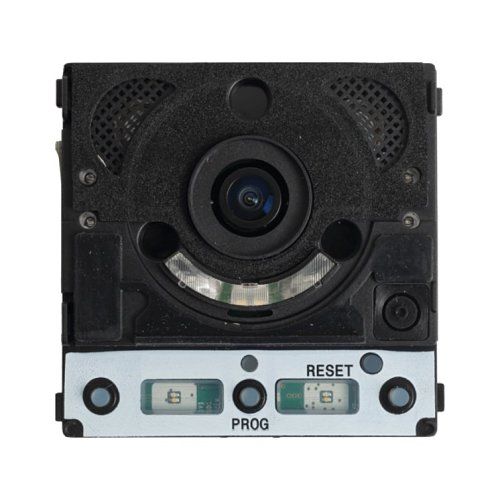

Discover the BPT MTMV-01 Video Module, a perfect addition to your MTM Panel for the X1 System. This module features two call buttons and on-board controls for electric lock and auxiliary functions. Its 'Wide-eye' lens offers a broad 100° horizontal and 82° vertical view, ensuring comprehensive coverage. Enjoy enhanced visibility with its high-efficiency illuminator and anti-glare diffuser, along with LED pictograms that indicate various status alerts like door opening and active communication. The module also includes adjustable settings for the speaker, microphone, and electric lock, and dual backlit name tags in blue or white. It boasts an IP54 rating for water and dust resistance, and a MiniUSB port for easy firmware updates and programming. Upgrade your security system today with the BPT MTMV-01!
Main Features
2 call buttons
2 on-board controls: electric lock and auxiliary control (1A, 30V max)
" Wide-eye" lens, aperture 100° horizontally and 82° vertically
High efficiency illuminator (adjustable brightness) with anti-glare diffuser
LED pictograms for status alerts: door opening, active communication, call in progress and system busy
Adjustable speaker, microphone and electric lock
Dual blue or white backlit name tags with brightness settings
Water and dust protection rating IP54
MiniUSB front panel for firmware updating and programming.
Specifications
Application/Usage
Door
Compatibility
Came X1 Systems
Depth
35.00mm
Device Supported
Intercom System
Durability
Dustproof; Waterproof
Features
Adjustable Brightness; Anti-glare; LED Indicator; Microphone; Speaker
