C-TEC 5 Series 24V 5A EN54-4 Metal Boxed PSU (2 x 12V 18Ah Max) (BF562-5)

SKU: BF562-5Brand: C-TEC
4.6store rating from 123 reviews
Out of stock Qty Delivery
All locations0Lead time 2 to 6 weeks, estimate only
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price£196.00
235.20 inc. VAT196.00 ex VAT
Stock:
Out of stock. Lead time 2 to 6 weeks, estimate only
Delivery
Out of stock
Lead time 2 to 6 weeks, estimate only
Collect in Poole
Not stocked in Poole
Delivery only
C-TEC 5 Series 24V 5A EN54-4 Metal Boxed PSU (2 x 12V 18Ah Max) (BF562-5) £196.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Certified to EN54-4/A2 by the LPCB and VdS
  • Plastic cover on the PSU PCB guards against touching live parts
  • Single-pole volt-free changeover relay that switches on any fault condition
  • Supply present, general fault, fault type and auxiliary equipment fault indicators
  • Two selectable battery charge currents
  • Battery resistance monitoring to EN54-4/A2; fault impedance limits can be optimised to suit the load current

Frequently bought together

Product details

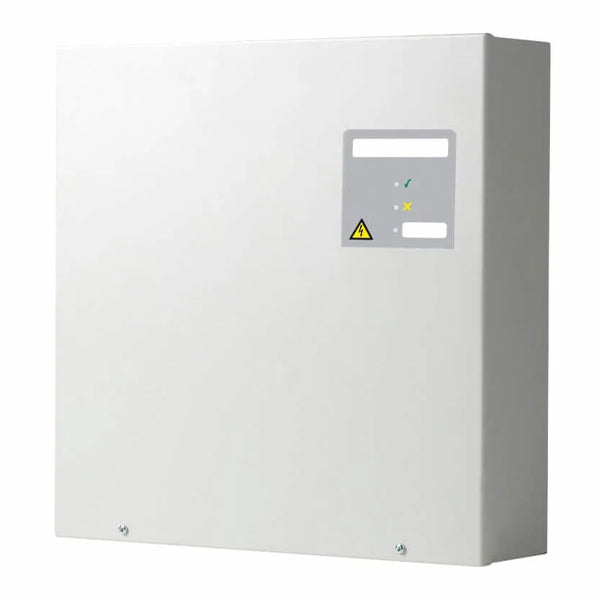

The C-TEC BF562-5 is a 24V 5A switch mode/digital hybrid power supply in a metal enclosure, certified to EN54-4/A2 by the LPCB and VdS. It is ideal for powering beam detectors, auto-dial communicators, aspirating smoke detectors, auto-open vent systems, auxiliary sounder systems or any other device performing a mandatory function of a fire alarm system.

Key features

  • Certified to EN54-4/A2 by the LPCB and VdS
  • Plastic cover on the PSU PCB guards against touching live parts
  • Single-pole volt-free changeover relay that switches on any fault condition
  • Supply present, general fault, fault type and auxiliary equipment fault indicators
  • Two selectable battery charge currents
  • Battery resistance monitoring to EN54-4/A2; fault impedance limits can be optimised to suit the load current
  • Mains fail simulation mode
  • On-board temperature sensor, with an optional BF322 remote battery temperature sensor
  • Can be customised with a BF423 configurator and PC (changing parameters takes the PSU outside the scope of EN54-4)
  • Bi-directional data port for PSU status data
  • Electronic functions comply with EN50131-6 grades 1-4 for security applications
  • BF562-5/E encased version also available

Technical specifications

  • Output: 24V DC, total output current limited to 5A
  • I max.a: 4.6A or 4A selectable; I max.b: 5A (charging turned off)
  • Mains supply: 230V 50/60Hz, rated current 1.3A r.m.s.
  • Battery charge capacity: 4Ah to 17Ah
  • Batteries: 2 x 12V VRLA (approved: Yucel Y Series 7Ah to 17Ah)
  • Indicators: 3 external (Supply Present, General Fault, Auxiliary Fault) and 2 internal (Hazardous Voltages Present, PSU Status)
  • Connections: mains input, supply output, battery input, fault relay, charge off input; remote thermistor via PL3
  • Dimensions: 404mm (W) x 404mm (H) x 110mm (D)
  • Construction: metal lid and base, RAL7035 textured finish
  • IP rating: IP30 (indoor use only)
  • Weight: 5kg (without batteries)
  • Operating temperature: -5°C to +40°C, max. 95% relative humidity
