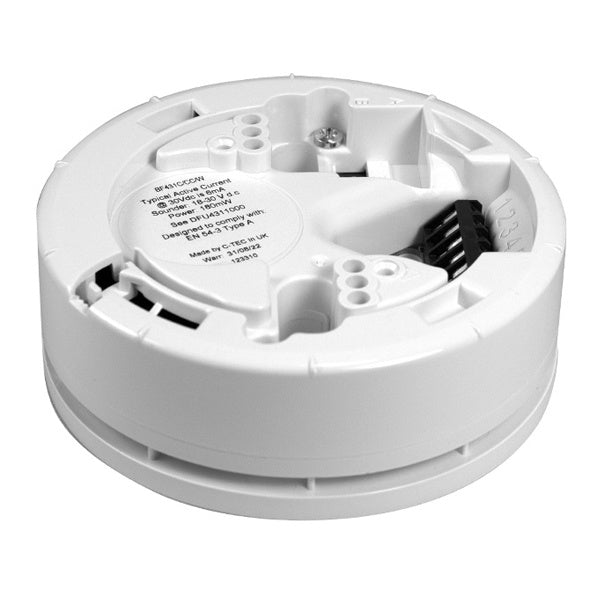

C-TEC ActiV 96dB(A) Base Sounder (BF431C/CC/W)

The C-TEC ActiV BF431C/CC/W is a conventional 96dB(A) base sounder for ceiling mounting. It can be used on its own with a cap, or stacked with an ActiV detector and base as a combined sounder/detector base. It is certified to EN54-3 and works with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (C-TEC recommends testing on third-party panels before use).

Key features

• Certified to EN54-3 by the LPCB
• 96dB(A) sound output at 1m
• 31 selectable primary tones plus an optional secondary tone
• Two volume levels (high and low)
• Ceiling mounted: stand-alone with an optional BF330CTLIDW (white) or BF330CTLIDR (red) cap, or stacked with a detector and base
• Supplied with a BF431QCP quick connect plate and detector spur wires; the quick connect plate must be used for EN54-3 compliance

Technical specifications

• Supply voltage: 18 to 30V DC
• Sound output: 96dB(A)
• Alarm current: 5.5mA at 30V DC; 3.8mA at 18V DC
• Dimensions: 122mm diameter x 46mm deep (without detector and base)
• IP rating: IP21C (Type A)
• Weight: 170g
• Operating temperature: -10°C to +55°C, max 95% relative humidity (non-condensing)

What's in the box

• BF431C/CC/W base sounder
• BF431QCP quick connect plate
• Detector spur wires
