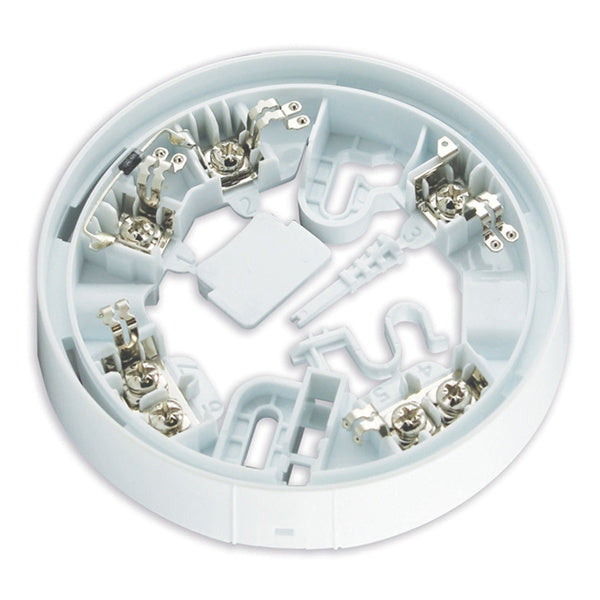

The C-TEC ActiV C4408D is a diode detector base for C-TEC's full range of ActiV conventional fire detectors. The Schottky diode between the +V in and +V out terminals keeps the zone working if a detector head is removed. It is certified to the relevant parts of EN54 in conjunction with ActiV detectors.
Key features
- Compatible with all C-TEC ActiV fire detectors
- Third-party certified to the relevant parts of EN54 by Intertek as part of the ActiV detector certifications
- Simple 'click and twist' design with plenty of working space
- Can be ceiling mounted in any orientation thanks to the 360° LED strips on ActiV detectors
- Integrated detector/base locking mechanism, head removal tool and ID tag
- Remote LED terminals for an optional BF318 remote indicator
Technical specifications
- Supply wiring: 2-wire monitored, polarity sensitive
- Connections: +V in, +V out, remote LED +V, 0V (x2), screen (x2); Schottky diode between +V in and +V out
- Terminals: accept up to 2.5mm fire-rated cable
- Dimensions: 102.2mm diameter x 20.5mm deep
- Construction: white polycarbonate rated to UL94 V-2, tin-plated steel terminals
- IP rating: IP42
- Weight: 55g
