C-TEC ActiV Hi-Output W-2.75-9 Wall VAD c/w Voice Sounder - Deep Base (BF447C/CC/DR)

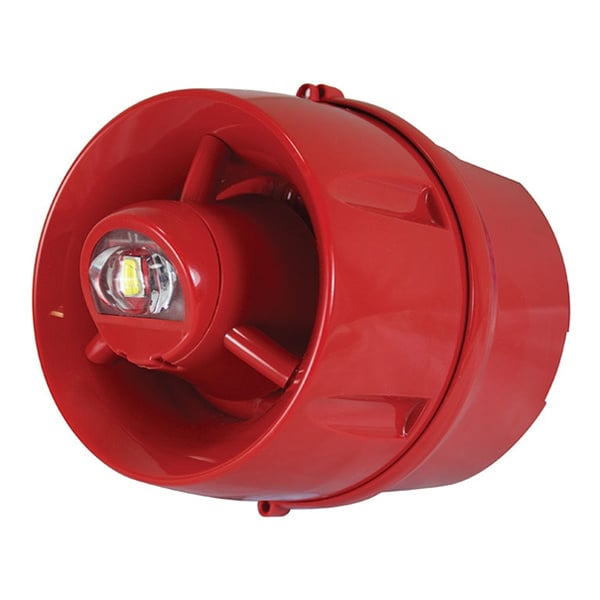

The C-TEC BF447C/CC/DR is a conventional high-output wall-mounted visual alarm device (VAD) with a built-in voice sounder, from C-TEC's ActiV range, supplied with a deep base. It provides W-2.75-9 rated light distribution and works with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and most other makes (testing on third-party panels is recommended before use).

Key features

• W-2.75-9 rated light distribution when wall mounted (minimum 0.4 lux over a 2.75m x 9m cuboid area); can also be used as a W-4-4 VAD
• Choice of two evacuation voice messages and four evacuation alarm tones (the selected message is preceded by the selected tone)
• Three selectable flash settings: 0.5Hz, 1Hz or off
• White flash
• IP33C rated
• Designed for wall mounting and can be used in covered outdoor areas
• Manufactured in the UK by C-TEC

Technical specifications

• Order code: BF447C/CC/DR
• Operating voltage: 18 to 30V DC
• Nominal sound output: 88dB(A) @ 1m
• Alarm current at 30V DC: 17mA (0.5Hz) or 24mA (1Hz)
• Alarm current at 18V DC: 18.5mA (0.5Hz) or 30mA (1Hz)
• Dimensions: 114mm diameter x 132mm deep
• IP rating: IP33C (Type B)
• Weight: 315g
• Operating temperature: -10°C to +55°C, maximum 95% relative humidity (non-condensing)
