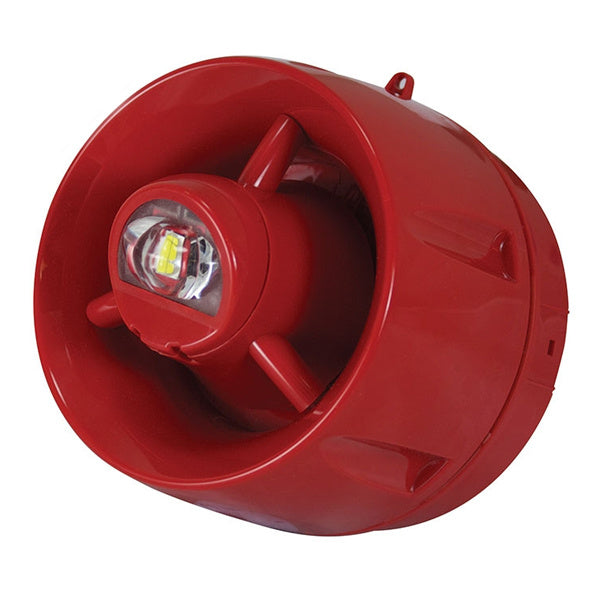

C-TEC ActiV Hi-Output Wall Sounder / VAD - Shallow Base (BF433C/CC/SR)

The C-TEC ActiV Hi-Output Wall Sounder / VAD (BF433C/CC/SR) is the shallow-base version of C-TEC's conventional ActiV combined sounder and visual alarm device, for wall mounting on 24V conventional fire alarm systems. It pairs a powerful 100dB(A) sounder with a white-flash VAD giving W-2.75-9 coverage.

Key features

• 100dB(A) sound output at 1m
• 31 selectable primary and secondary tone pairs, with high and low volume settings
• Three selectable VAD flash rates: 0.5Hz, 1Hz or off (white flash)
• W-2.75-9 rated light distribution when wall mounted (minimum 0.4 lux over a 2.75 x 9m cuboid area), also rated as a W-4-4 VAD
• LPCB certified to EN 54-3 (sounders) and EN 54-23 (VADs)
• Compatible with C-TEC CFP, FP, MFP and EP203 conventional panels and virtually all other makes (testing on third-party panels is recommended before use)
• Manufactured in the UK by C-TEC

Technical specifications

• Part number: BF433C/CC/SR
• Base: Shallow
• Supply voltage: 18 to 30V DC
• VAD category: W-2.75-9 (also W-4-4)
• Approvals: EN 54-3 and EN 54-23, LPCB certified
