C-TEC ActiV Hi-Output Wall Sounder / VAD - Deep Base (BF433C/CC/DR)

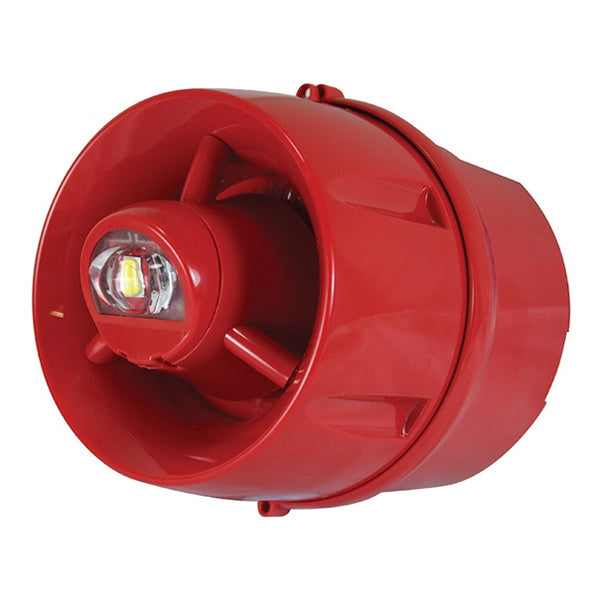

The C-TEC ActiV Hi-Output Wall Sounder / VAD (BF433C/CC/DR) is a conventional combined sounder and visual alarm device with a deep base, designed for wall mounting on 24V conventional fire alarm systems. It pairs a powerful 100dB(A) sounder with a white-flash VAD giving W-2.75-9 coverage, and it can also be used in covered outdoor areas.

Key features

• 100dB(A) sound output at 1m
• 31 selectable primary and secondary tone pairs, with high and low volume settings
• Three selectable VAD flash rates: 0.5Hz, 1Hz or off (white flash)
• W-2.75-9 rated light distribution when wall mounted (minimum 0.4 lux over a 2.75 x 9m cuboid area), also rated as a W-4-4 VAD
• LPCB certified to EN 54-3 (sounders) and EN 54-23 (VADs)
• Compatible with C-TEC CFP, FP, MFP and EP203 conventional panels and virtually all other makes (testing on third-party panels is recommended before use)
• Manufactured in the UK by C-TEC

Technical specifications

• Part number: BF433C/CC/DR
• Supply voltage: 18 to 30V DC
• Alarm current at 30V DC: 12.2mA (0.5Hz) or 19.5mA (1Hz)
• Alarm current at 18V DC: 14.5mA (0.5Hz) or 25mA (1Hz)
• VAD category: W-2.75-9 (also W-4-4)
• Dimensions: 114mm diameter x 132mm deep
• Weight: 315g
• Ingress protection: IP33C (Type B)
• Operating conditions: -10°C to +55°C, max. 95% RH non-condensing
• Approvals: EN 54-3 and EN 54-23, LPCB certified
