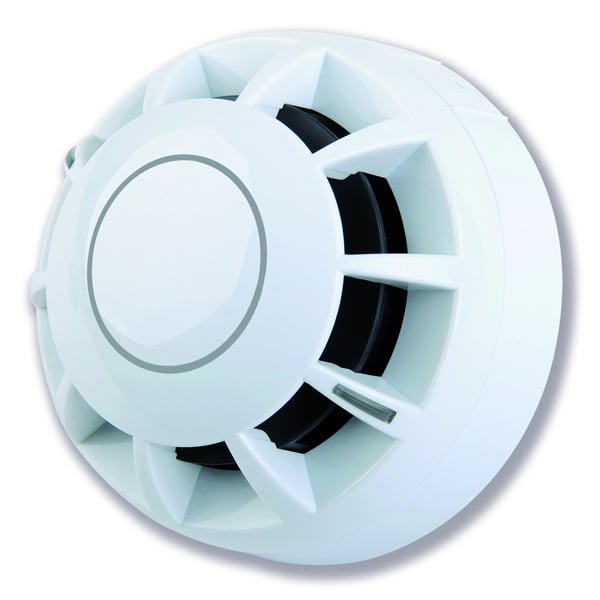

The C-TEC ActiV C4416 is a conventional optical smoke detector for C-TEC's ActiV range. It is manufactured by C-TEC in the UK and certified to EN54-7 by Intertek. It fits the ActiV C4408D diode, C4408 non-diode and C4408R relay bases, and suits conventional fire alarm systems as well as C-TEC Hush-ActiV domestic systems.
Key features
- Third-party certified to EN54-7 by Intertek
- Wide 6-33V DC operating voltage
- Two 8mm x 2mm ultra-bright red LED strips for 360° visibility
- Drift compensation automatically recalibrates sensitivity to suit prevailing conditions and contamination, allowing a life span of more than 8 years
- Remote LED output available via the ActiV base
- Fits ActiV C4408D, C4408 and C4408R bases (supplied separately)
Technical specifications
- Detection: optical smoke, nominal alarm threshold 0.16dB/m obscuration (EN54-7:2000)
- Supply wiring: 2-wire monitored, polarity sensitive
- Supply voltage: 9 to 33V DC
- Quiescent current: 30µA at 24V DC
- Alarm voltage: 6-33V DC
- Alarm current: 19mA at 12-33V DC; 11mA at 9V DC; 2.5mA at 6V DC
- Alarm reset voltage: less than 1V DC
- Dimensions: 102.2mm diameter x 57.5mm deep; 37mm deep when fitted in base
- Construction: white polycarbonate casing rated to UL94 V-2
- IP rating: IP42
- Weight: 99g
