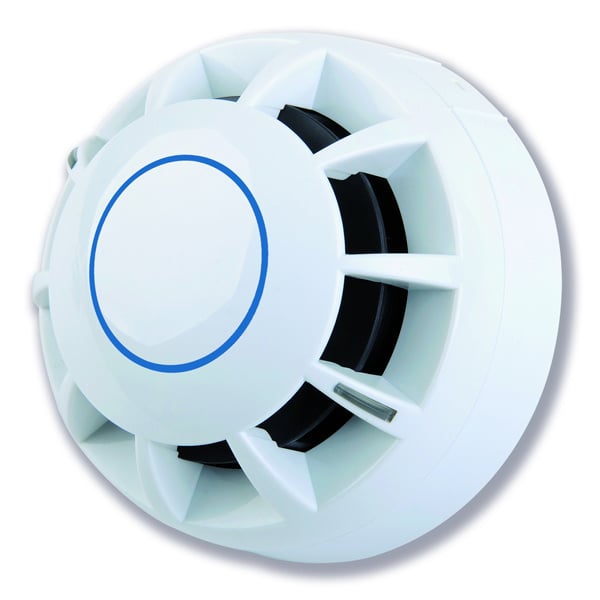

The C-TEC C4414 is a conventional multi-sensor fire detector from C-TEC's ActiV range. It combines a heat sensor and a smoke sensor to detect a wide range of fires while reducing false alarms, and is certified to EN54-5 and EN54-7 by Intertek.
Key features
- Combined heat and smoke sensing
- Third-party certified to EN54-5 and EN54-7 by Intertek (also tested to prEN54-29)
- Drift compensation automatically recalibrates sensitivity for prevailing conditions and contamination
- Two 8mm x 2mm ultra-bright red LED indicating strips giving 360° visibility
- Remote LED output available via the ActiV base
- Compatible with ActiV C4408D diode, C4408 non-diode and C4408R relay bases
- Manufactured by C-TEC in the UK
Technical specifications
- Order code: C4414
- Smoke sensitivity: nominal alarm threshold 0.16dB/m obscuration (EN54-7:2000)
- Heat element static response temperature: 54°C minimum, 65°C maximum
- Application temperature: 25°C typical, 50°C maximum
- Supply wiring: 2-wire monitored, polarity sensitive
- Operating voltage: 6 to 33V DC
- Quiescent current: 30µA @ 24V DC
- Alarm current: 19mA @ 12-33V DC; 11mA @ 9V DC; 2.5mA @ 6V DC
- Alarm reset voltage: less than 1V DC
- Diameter: 102.2mm
- Construction: white polycarbonate casing rated to UL94 V-2 with nylon parts
- IP rating: IP42
- Weight: 99g
- Base: ActiV base required (sold separately)
