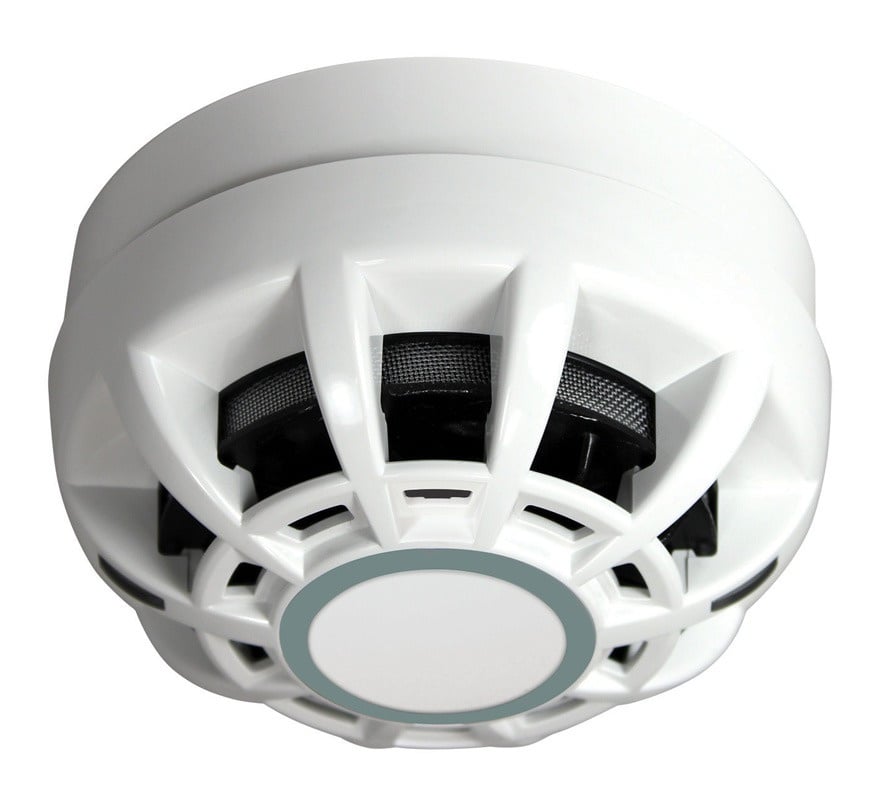

C-TEC CAST-PRO Addressable Optical Smoke Detector (CP416)

The C-TEC CP416 is a programmable CAST-PRO addressable optical smoke detector for use with C-TEC's XFP and ZFP CAST protocol addressable fire alarm panels. It uses C-TEC's MASC™ smoke chamber and AFFIRM™ algorithms to detect real fires quickly while reducing false alarms.

Key features

• Certified to EN54-7, EN54-13 and EN54-17 by Kiwa Telefication
• MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms for high false alarm tolerance
• Two detection modes: normal and high sensitivity (normal by default)
• Drift compensation
• On-board short-circuit loop isolator
• Two 8mm x 2mm ultra-bright red LED indicating strips giving 360° visibility; optional remote LED
• Mounts on the C-TEC CA408 CAST base with integrated locking mechanism and ID tag (CA408R relay base also available)
• Designed and manufactured in the UK

Technical specifications

• Order code: CP416
• Detection type: optical smoke
• Compatibility: C-TEC XFP/ZFP CAST protocol addressable fire panels
• Supply wiring: 2-wire, polarity sensitive
• Operating voltage: 22 to 40V DC
• Quiescent current: 570µA @ 40V
• Alarm current: <1mA
• CPR number: 0063-CPR-242190022
• Dimensions: 105mm diameter x 48mm deep (detector only); 65mm deep in base
• IP rating: IP21C
• Weight: 118g (detector only); 172g (in base)
• Operating temperature: -10°C to +50°C, maximum 95% relative humidity (non-condensing)
• Base: requires a CA408 CAST base (sold separately)
