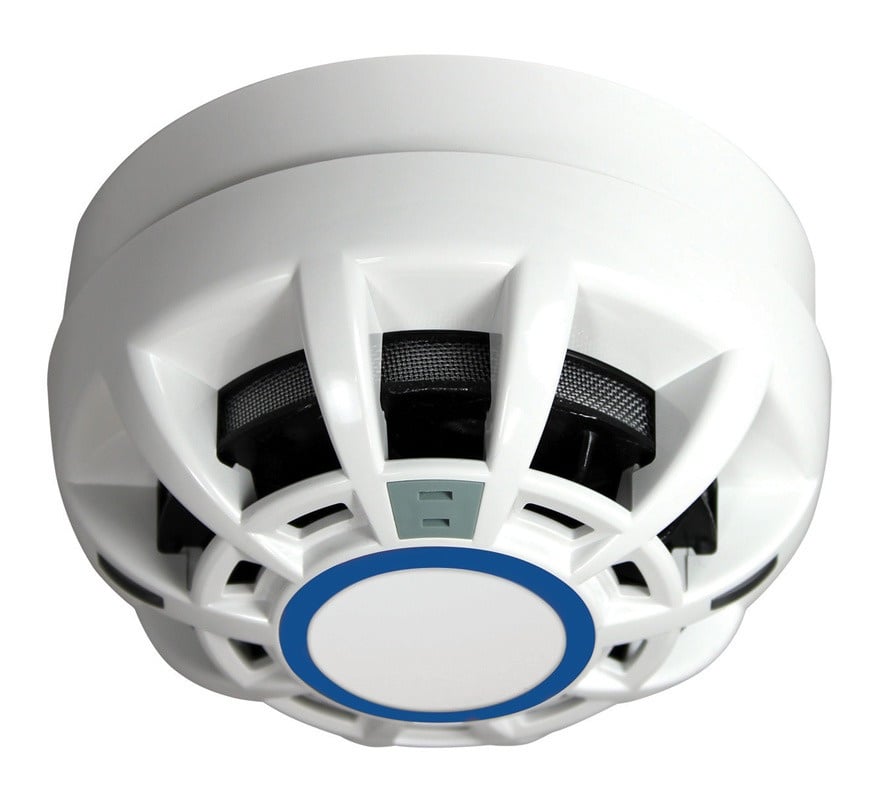

C-TEC CAST-PRO Addressable Smoke & Heat Multisensor with Tone Sounder (CP414T)

The C-TEC CP414T is a CAST-PRO addressable smoke and heat multisensor with a built-in 92dB(A) tone alarm sounder, combining fire detection and alarm signalling in a single device. It is certified to EN54-3, 5, 7, 17 and 29 and works with C-TEC's ZFP touchscreen-controlled addressable fire panels running the C-TEC CAST protocol.

Key features

• Smoke and heat multisensor detection plus a 92dB(A) tone sounder in one device
• MASC (Miniature Advanced Smoke Detection Chamber) and AFFIRM algorithms for high false alarm tolerance while improving detection of real fires
• Drift compensation
• Multiple detection modes, with different sensitivities for different times of day
• Onboard short circuit loop isolator
• Two 8mm x 2mm ultra-bright red LED indicating strips
• Fits the CA408 CAST base with integrated locking mechanism and ID tag

Technical specifications

• Approvals: EN54-3, EN54-5, EN54-7, EN54-17 and EN54-29; CPR number 0063-CPR-242190019
• Protocol: C-TEC CAST (ZFP CAST addressable fire alarm systems)
• Detector type: heat and smoke detection plus tone alarm
• Detection modes: 8 (default mode 7)
• Sounder output: 92dB(A)
• Supply voltage: 28 to 40V DC
• Quiescent current: 590µA at 40V
• Alarm current: 5.4mA max (max volume)
• Dimensions: 105mm diameter x 48mm deep (detector only); 105mm diameter x 65mm deep (in base)
• Weight: 122g (not in base); 176g (in base)
• Supply wiring: 2-wire, polarity sensitive
• Indicators: 2 red LED strips giving 360° visibility in alarm; optional remote LED
• Connections (via CA408 base): +Ve in, +Ve out, remote LED +Ve, 0V, 0V, screen, screen
• IP rating: IP21C
• Operating temperature: -10°C to +50°C, max 95% relative humidity (non-condensing)
• Requires a CA408 CAST base (CA408R relay base also available)
