A high-quality programmable multi-sensor fire detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels. LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication certified to EN54-13. Onboard programmable heat & smoke sensors...
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Frequently bought together
Product details

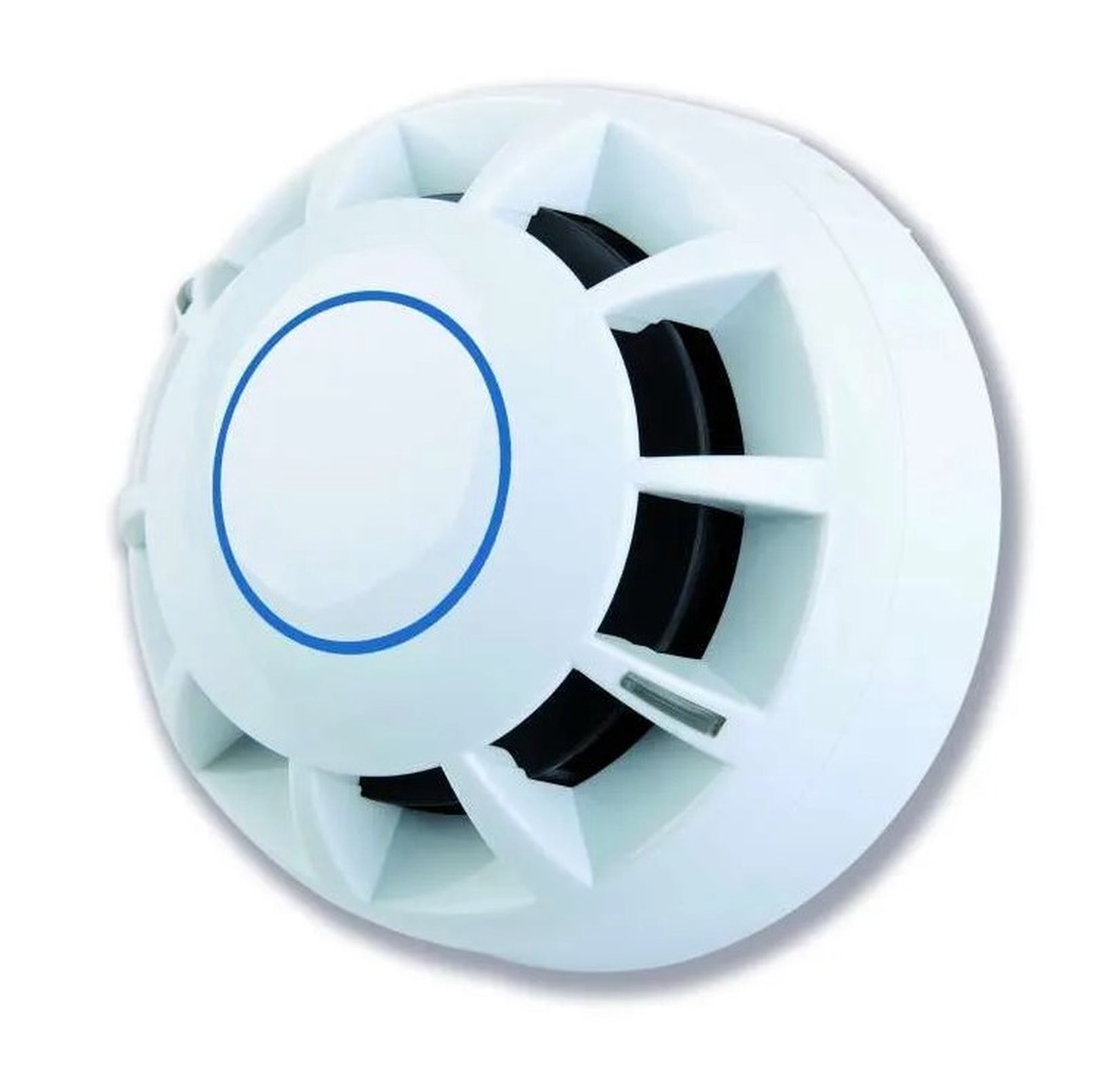

A high-quality programmable multi-sensor fire detector for use with C-TEC’s XFP & ZFP ‘CAST’ protocol Addressable Fire Panels. LPCB certified to EN54-5, 7 & 17 and CEA 4021. Also Kiwa Telefication certified to EN54-13. Onboard programmable heat & smoke sensors make it deal for detecting a wide range of fires whilst also reducing false alarms. Multiple sensitivity/sensor settings. Smart algorithms help reduce false alarms. Drift compensation functionality. Short circuit loop isolator. Includes two 8mm x 2mm ultra-bright red LED indicating strips. Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc). 5mA typical alarm current (370uA typical quiescent current) @ 22-40V DC. Programmable multi-function status LED. Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag.
Datasheet
C-TEC CAST Programmable Multisensor Fire Detector Need the datasheet? Our team will email it to you. Request datasheet
