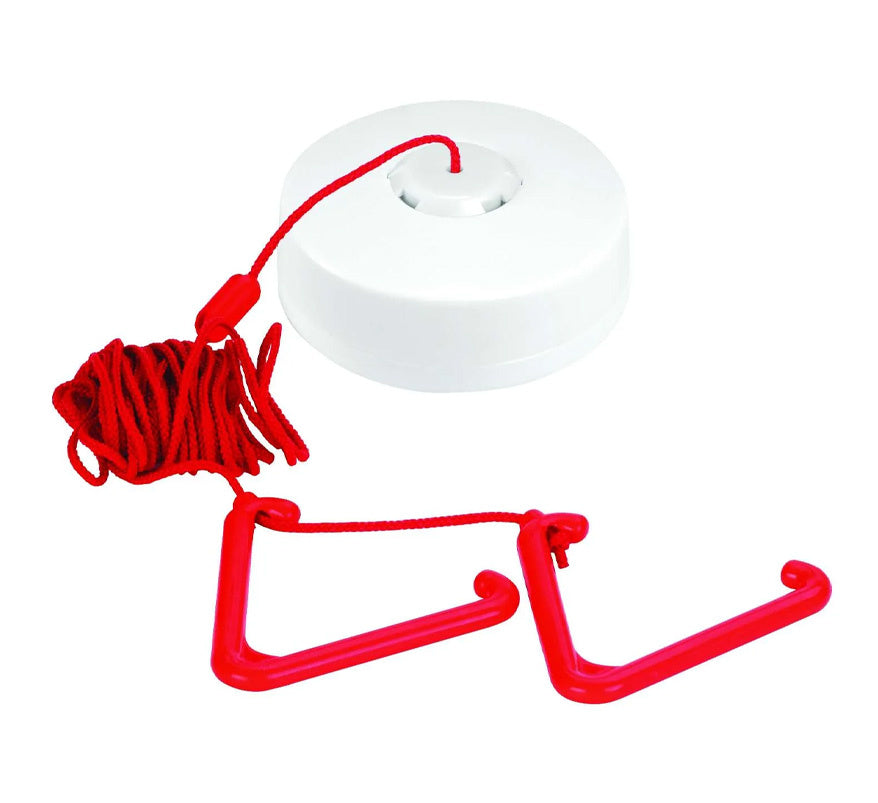

The C-TEC NC807C Ceiling Pull Unit generates a standard call on a C-TEC 800 Series conventional call system, and is the ceiling pull used in C-TEC's NC951 accessible toilet alarm kit. It is typically wired as a slave to an 800 Series call point or reset point so that its calls can be cancelled.
Key features
- Supplied with 3m of red nylon pull cord and two red open-sided triangular bangles for ease of use
- Red confidence LED and diffuser gives a bright red glow over a wide area to reassure the user that a call has been made
- Surface mountable; base fits 16mm conduit and BESA centres
- No quiescent current draw
Technical specifications
-
Part number: NC807C
-
Quiescent current: 0mA
-
Dimensions: 93mm diameter x 27mm deep
-
Construction: Plastic
-
Ingress protection: IP21
-
Weight: 55g
-
Operating conditions: -5°C to +40°C, max. 95% RH non-condensing
