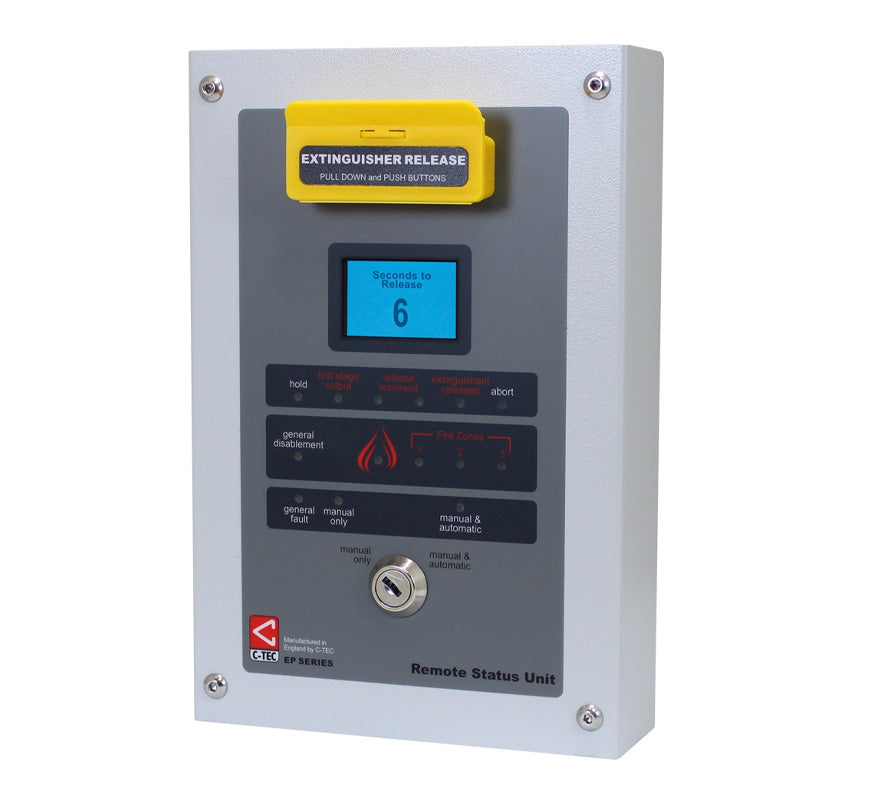

The C-TEC EP210S is a surface-mounted remote status unit for the EP203 automatic extinguisher release panel. It connects to the panel's RS485 terminals and repeats the system status on its own LCD, with a manual release button and mode keyswitch. A flush version (EP210F) and a weatherproof enclosure (BF359/1) are also available.
Key features
- 128 x 64 pixel LCD status display
- Pull-down manual release button (yellow housing)
- Mode keyswitch (Manual only, or Manual & Auto)
- Indicators: general fire, fire zones (x3), general disablement, hold, 1st stage output, 2nd stage output, release imminent (x2), extinguishant released, abort, general fault, manual only, manual/auto
- Three monitored inputs: hold, abort and mode
- Max. 8 remote status units (any mix) per EP203; daisy-chain wiring
Technical specifications
- Power: 21-28V DC (200mA electronic fuse)
- Quiescent current: 7mA
- Network: RS485, four-wire connection (2 power, 2 data)
- Monitored inputs: 6k8 end-of-line resistor on the last device of each circuit
- Dimensions: 160mm (W) x 240mm (H) x 51mm (D)
- Construction: metal, IP30
- Weight: 1.498kg
- Operating temperature: -5°C to +40°C, max. 95% relative humidity
