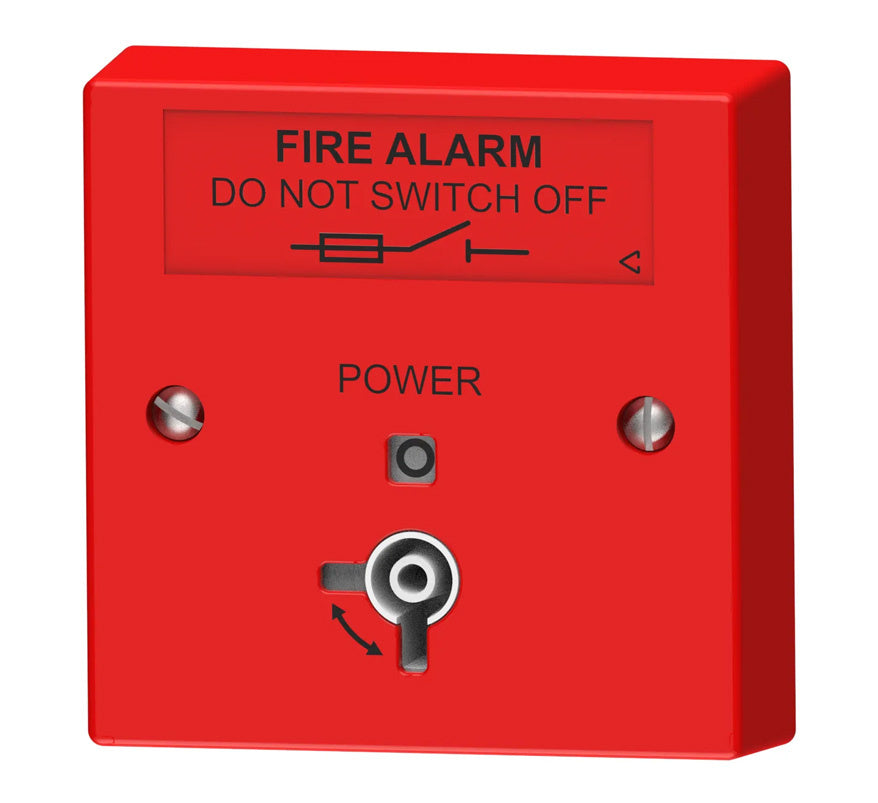

The C-TEC BF326/RF is a red, flush-mounted, double pole, lockable mains isolator keyswitch for fire alarm control panels. It lets the mains supply to a fire alarm panel be switched on or off in line with the requirements of BS 5839-1, using a special key that is only available to the responsible person.
Key features
- Designed to comply with the requirements of BS 5839-1
- Double pole, lockable isolation
- Fitted with a 5A fuse
- Operated with the red C-TEC S-Key (supplied), which is only available to the responsible person
- Can be wired with 1 x 2.5mm² or 2 x 1.5mm² cable, so that only an independent, sole mains supply feeds the fire panel as BS 5839-1 requires
- Can be labelled for use with an evacuation alert or emergency voice communication system (EVCS) using a BF326/LABEL
- Red PVC finish, flush mounting
Technical specifications
- Type: double pole, lockable, 230V
- Rated current: 5A
- Key type: red C-TEC S-Key
- Switch plate dimensions: 86 x 86 x 25mm
- Construction: red PVC
- IP rating: IP30
- Operating temperature: -5°C to +40°C, max 95% relative humidity (non-condensing)
