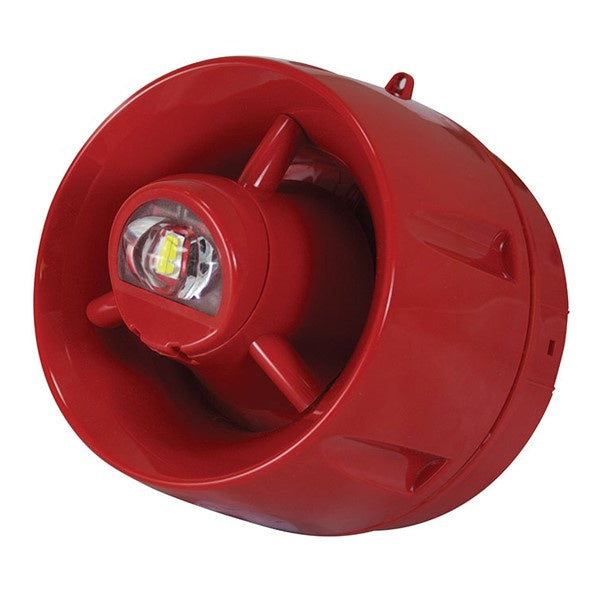

The C-TEC BF433A/CX/SR is a red, addressable hi-output wall VAD (visual alarm device) with a 103dB(A) sounder, on a shallow base. It gives W-2.4-8.2 light coverage (min 0.4 lux over a 2.4 x 8.2m cuboid area) when wall mounted. It is designed for C-TEC's XFP and ZFP addressable fire panels running the Apollo XP95/Discovery protocol. It is certified to EN54-3, EN54-23 and EN54-17 by the LPCB.
Key features
- Combined 103dB(A) sounder and white flashing VAD
- W-2.4-8.2 light distribution when wall mounted
- 7 selectable volume levels and up to 15 selectable tone pairs
- Onboard short circuit loop isolator
- Group addressing lets multiple devices operate together
- Low 550µA quiescent current
- Wall mounting, indoor areas only
Technical specifications
- Approvals: certified to EN54-3, EN54-23 and EN54-17 by the LPCB
- VAD category: W-2.4-8.2 (also certified as W-4-4)
- Flash rate and colour: 0.5Hz; white
- Protocol: Apollo XP95/Discovery (C-TEC XFP/ZFP panels)
- Quiescent current: 550µA at 24V DC
- Indicators: polling (green LED) and short circuit isolator active (amber LED)
- Supply voltage: 17 to 28V DC (sounder); 21 to 28V DC (sounder/VAD)
- Nominal sound output: 103dB(A) (tone 1)
- Alarm current: 14.5mA at 24V DC (VAD lit, sounder on max)
- Dimensions: 108mm diameter x 99mm deep
- IP rating: IP21C (Type A)
- Weight: 230g
- Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
