The C-TEC Hush-ActiV HAK/1 is a Grade C domestic fire detection and alarm kit to BS 5839-6 (2019) for individual flats, houses and apartments. It pairs a low-level Hush-ActiV controller with C-TEC's ActiV range of conventional detectors and sounders. It can be used anywhere Grade D mains/battery alarms are specified, and uses the same wiring scheme as most mains/battery alarm systems.
Key features
- Grade C system to BS 5839-6 (2019): monitored wiring and a central controller
- Monitored for battery, power supply, detector removal and open/short circuit faults
- Low-level controller with easy-to-reach TEST and HUSH buttons, which helps with Equality Act compliance
- HUSH silences an unwanted alarm for 2 minutes (extendable by a further 2 minutes), mutes a fault buzzer for 24 hours, or disables detection for 15 minutes for hot works
- Monthly occupant test from the controller: press TEST for 3 seconds
- Replaceable lithium-ion battery gives over 72 hours of standby and lasts over 10 years in normal use
- All smoke detectors have built-in drift compensation
- Controller mounts on a standard UK 35mm double gang flush or surface back box
- Can be expanded with additional ActiV devices for larger systems
Technical specifications
- Standard: BS 5839-6 (2019) Grade C
- Compatibility: C-TEC ActiV conventional fire alarm devices
- Detector zone circuits: 1
- Conventional sounder circuits: 1
- Total output current: limited to 100mA
- Quiescent current: 5mA
- Battery: 2Ah Li-ion (replaceable, up to 10 year life)
- Indicators: Supply (green), Fault (yellow), Alarm (red), Hushed (amber) LEDs
- Controls: TEST and HUSH buttons; on-board sounder for fire/fault feedback
- Controller dimensions: 146mm (W) x 85mm (H) x 25mm (D)
- Construction: double gang plastic plate
- IP rating: IP40
- Controller weight: 160g
- Operating temperature: -5°C to +40°C, max 95% relative humidity

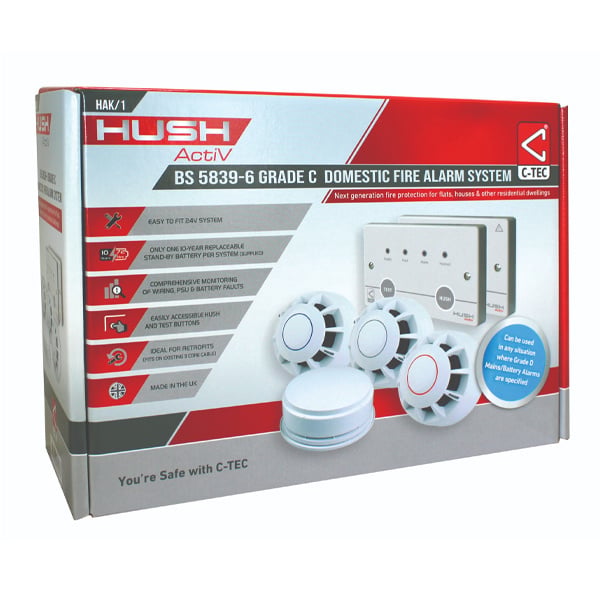

What's in the box
- 1 x double gang Hush-ActiV controller with 72 hour standby battery
- 1 x double gang 230V/24V 250mA PSU
- 1 x ActiV multi-sensor
- 1 x ActiV smoke detector
- 1 x ActiV 60°C heat detector
- 3 x ActiV diode detector bases
- 1 x ActiV base sounder with lid
