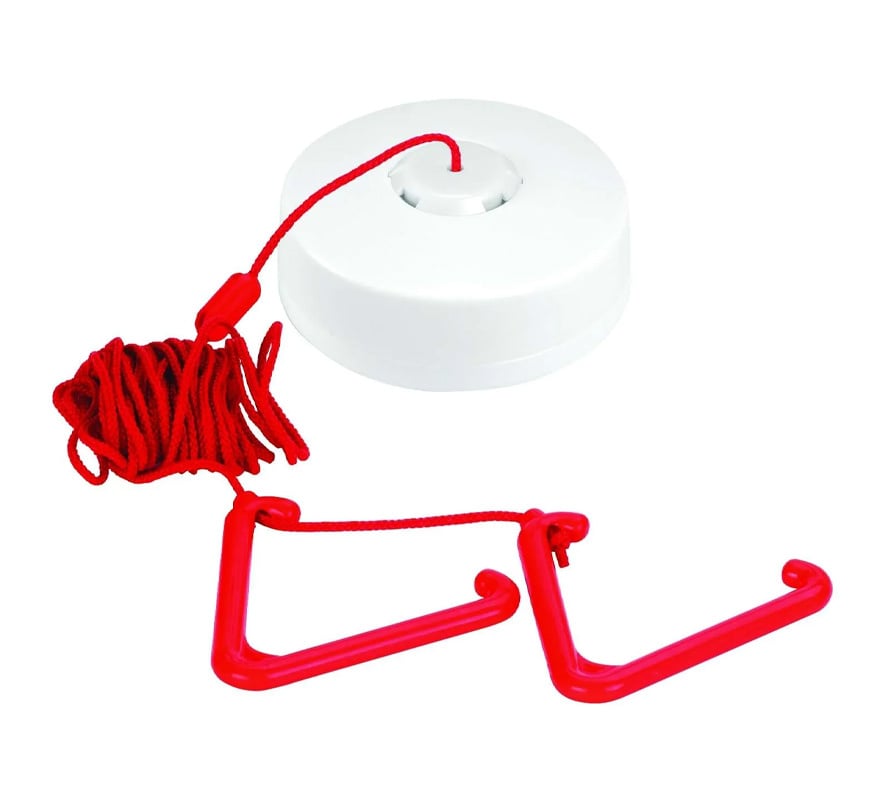

C-TEC Quantec Slave Ceiling/Wall Pull Unit (QT607)

The C-TEC QT607 is a slave ceiling/wall pull unit for the C-TEC Quantec addressable call system. It is used to generate a standard or ensuite call, and is typically wired as a slave to a Quantec addressable call point or Quantec accessible toilet reset point. It is also part of the QT951 Accessible Toilet Expansion Kit.

Key features

• Generates a standard or ensuite call on a Quantec addressable call system
• Ceiling or wall mountable (surface)
• Supplied with 3m of red nylon pull cord and two red open-sided triangular bangles for ease of use by the infirm
• Red confidence LED and diffuser glow brightly over a wide area to reassure the user that a call has been made
• Base fits 16mm conduit and BESA centres

Technical specifications

• System: C-TEC Quantec addressable call system (slave device)
• Quiescent current: less than 3mA
• Alarm current: 6mA
• Connections: Local +V, S (switch), R (red)
• Indicators: red reassurance LED/diffuser
• On-board sounder: no
• Dimensions: 93mm diameter x 27mm deep
• Construction: plastic
• IP rating: IP21
• Weight: 56g
• Operating temperature: -5°C to +40°C, max 95% relative humidity (non-condensing)

What's in the box

• QT607 ceiling/wall pull unit
• 3m red nylon pull cord
• 2 x red triangular bangles
