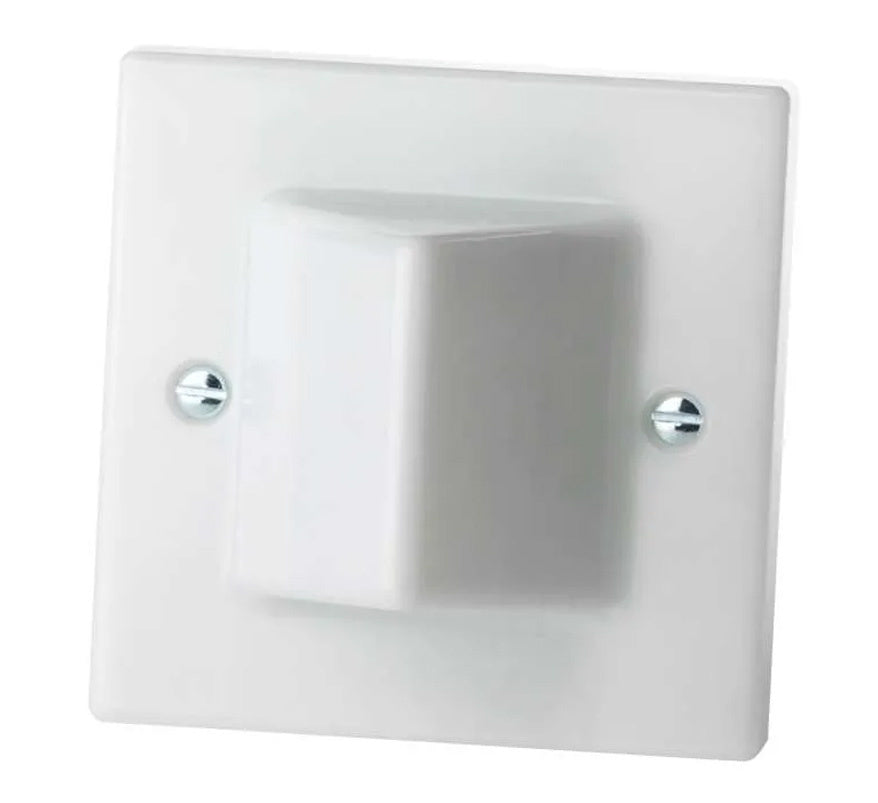

The C-TEC QT606S is a slave overdoor light with sounder for the Quantec addressable call system. It gives audible and visual indication, outside bedrooms, WCs and similar areas, of calls made from a Quantec call point or accessible toilet reset point. It is also supplied as part of the QT951 accessible toilet alarm kit.
Key features
- Flash and sounder rates change and intensify to reflect the urgency of the call
- Dual ultra-bright red and green LEDs with triangular diffuser, highly visible from a distance
- Wired as a slave to a Quantec addressable call point or accessible toilet reset point
- Mounts on a standard UK 25mm single gang flush or surface back box
- Tough, durable ABS plastic
Technical specifications
- Quiescent current: less than 1.5mA
- Alarm current: 40mA
- Connections: R (red), G (green), Net+, Net-
- Dimensions: 87mm (W) x 87mm (H) x 54mm (D)
- IP rating: IP41
- Weight: 58g
- Operating temperature: -5°C to +40°C, max. 95% relative humidity (non-condensing)
