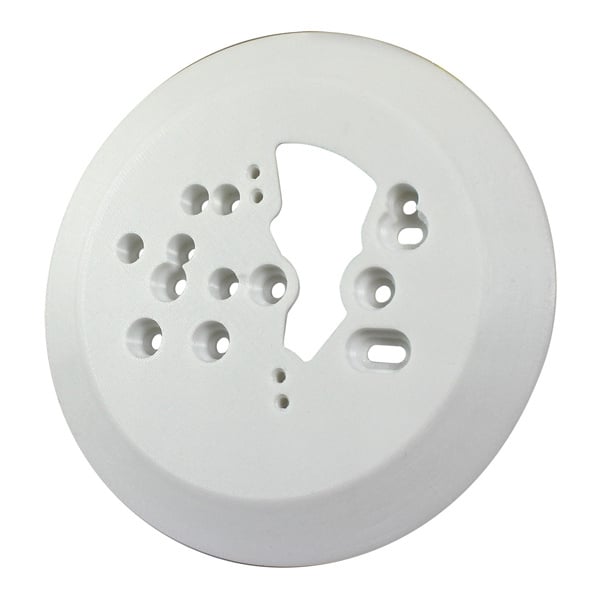

The C-TEC BF-DP retrofit decor plate is a 152mm diameter mounting accessory for ceiling-mounted C-TEC ActiV and CAST fire alarm devices. It is designed to cover the decorating witness marks left behind when Grade D mains/battery alarms are replaced during system retrofits.
Key features
- Easy to fit under ceiling-mounted ActiV or CAST devices
- Covers the marks left by removed Grade D smoke/heat alarms
- Multiple mounting holes and a large cable entry section
- Two K40x12 Pozi flange PT screws supplied to secure the device to the plate
Technical specifications
- Compatibility: C-TEC ceiling-mounted ActiV and CAST devices
- Diameter: 152mm
- Depth: 10mm
- Material: white polycarbonate (RAL9003)
- Fixings: 4 device fixing holes; 12 ceiling fixing holes (use 3.5-5mm screws, not supplied)
- Weight: 60g
