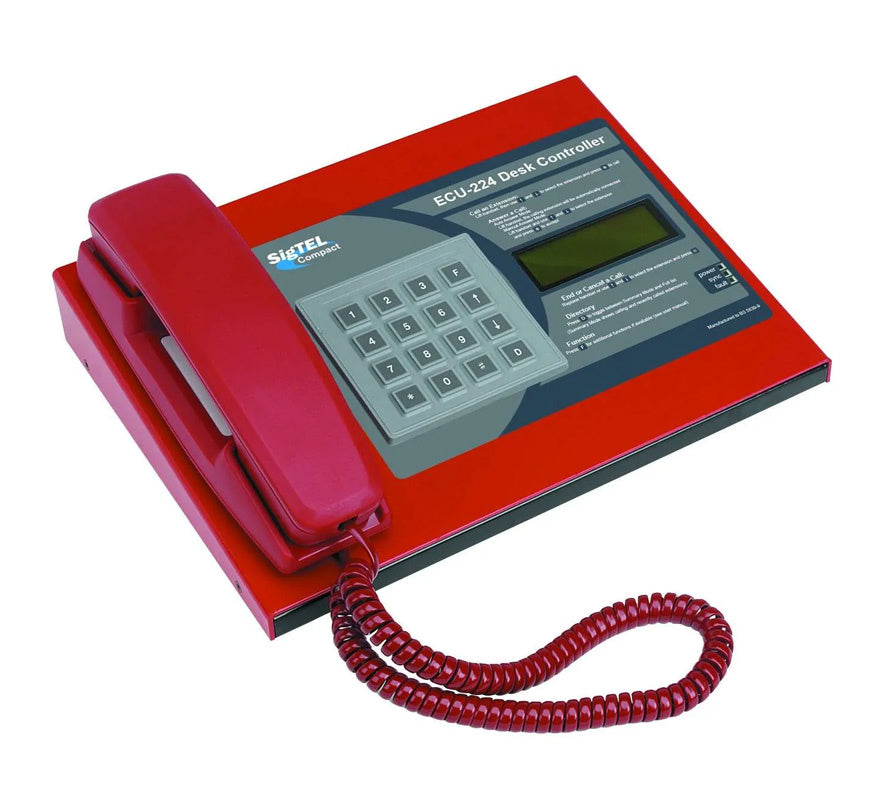

The C-TEC ECU-224 is a 224 line desk controller for C-TEC's SigTEL disabled refuge, fire telephone and stadium marshalling system. It lets operators communicate with up to 224 disabled refuge or fire telephone outstations and is designed to simplify call handling on larger emergency voice communication (EVC) installations. It must be connected to an ECU-4, ECU-8 or ECU-16 master controller via an ECU723 interface/network card.
Key features
- Communicates with up to 224 disabled refuge or fire telephone outstations
- Simplifies call handling on larger EVC systems
- Free-standing desk design; optional sloping wall mounting shelf (ECUWMB)
- Up to 14 ECU-224s can be installed on a network (each needs an ECU723 card in a compatible controller)
Technical specifications
- Connection: via ECU723 interface/network card in an ECU-4, ECU-8 or ECU-16
- Dimensions: 305mm (W) x 100mm (H) x 230mm (D)
- Finish: RAL 3000 red with grey/black label
- Weight: 1.7kg
