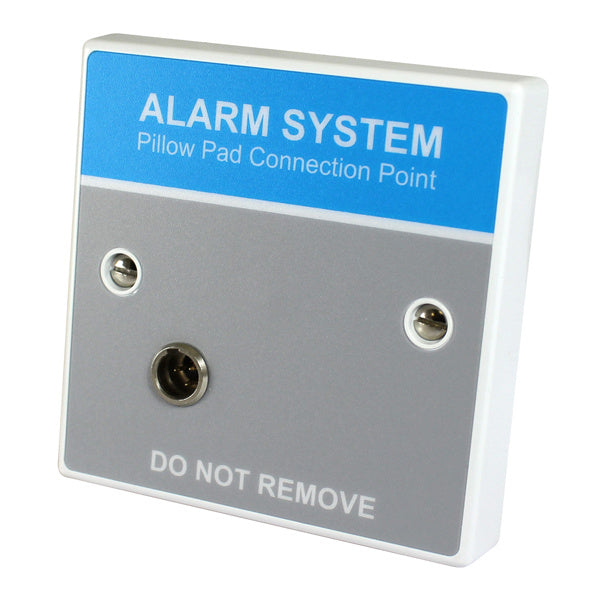

The C-TEC BF320JP is a single gang locking jack socket for the BF320 vibrating pillow pad. Together they warn people with hearing impairments of a fire alarm or evacuation alert condition. It is compatible with all C-TEC fire alarm and evacuation alert systems and supersedes the older BF364 jack socket.
Key features
- Locking mini-XLR connector and plug help prevent accidental removal of the pillow pad
- Line monitored for disconnection via an internal 6k8Ω end-of-line resistor
- Selectable 6k8 (pillow pad) or 27k (jack socket) end-of-line monitoring for fire alarm or evacuation alert use
- Connects across a conventional fire alarm 24V DC sounder circuit, or a CA737 four-way flat interface unit on a C-TEC Evac-Alert system
- Fits a standard UK 25mm single gang flush or surface back box
Technical specifications
- Operating voltage: 10-30V DC
- Alarm current: 65mA at 24V, 110mA at 10V (with pillow pad connected)
- Connections: +24V and 0V
- Dimensions: 86mm (W) x 86mm (H) x 15mm (D)
- Finish: white PVC, grey/blue label
- Weight: 56g
- Operating temperature: -10°C to +60°C
