C-TEC Stainless Steel Emergency Assistance Alarm Kit - Conventional (NC951/SS)

The C-TEC NC951/SS is a brushed stainless steel, single zone emergency assistance alarm kit. It lets a person in distress raise an alarm, for example in a disabled persons toilet. When the ceiling pull cord is pulled, a light and sounder operate outside the WC and on the system's call controller. It is a conventional, stand-alone kit and can be wired in 4-core stranded security cable.

Key features

• High-quality brushed stainless steel call controller, reset point and overdoor light
• Easy to install and simple to use
• Up to 3 ceiling pulls can be daisy-chained where more than one call point is needed (for example at the WC and the wash basin)
• Call controller has a reset button, which can be disabled if required
• Red reassurance LEDs on the ceiling pull and reset point
• Optional NC941B remote battery back-up kit keeps the controller running for a limited time after mains failure
• Suitable for high-profile applications. Where a fully BS 8300 compliant system is needed, C-TEC recommends the standard plastic NC951 kit.

Technical specifications

• Mains supply: 230V 50Hz (36mA max)
• Internal power supply: 13-13.8V DC
• Total output current: limited to 250mA
• Indicators: red alarm and green supply LEDs (NC941/SS); twin red alarm LEDs (NC806CS/SS); red reassurance LEDs (NC807C, NC809DB/SS)
• Sounders: on the NC806CS/SS and NC941/SS
• Call acknowledgement: not supported
• Dimensions: NC941/SS 156 x 94 x 37mm; NC806CS/SS 87 x 87 x 80mm; NC809DB/SS 87 x 87 x 24mm; ceiling pull 93mm diameter x 27mm
• IP rating: IP41 (wall-mounted devices), IP21 (ceiling pull)
• Operating temperature: -5°C to +40°C, max 95% relative humidity (non-condensing)

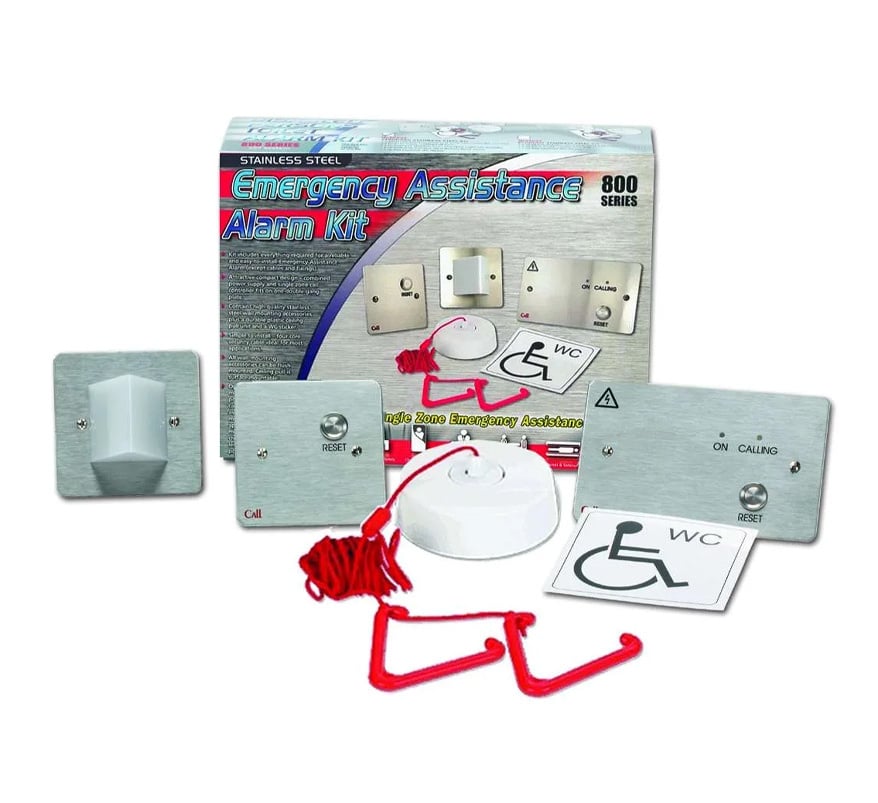

What's in the box

• NC941/SS 12V stainless steel call controller
• NC806CS/SS stainless steel overdoor light with sounder
• NC809DB/SS stainless steel reset point
• NC807C plastic ceiling pull
