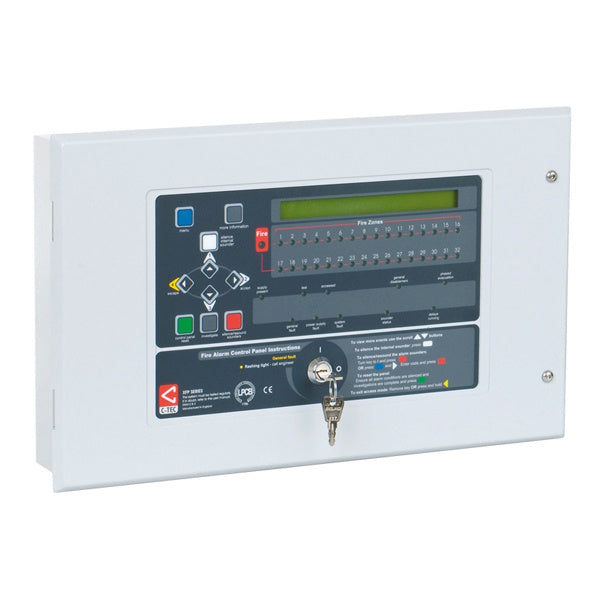

C-TEC XFP 2 Loop 32 Zone Addressable Fire Panel (XP95/Discovery Protocol) (XFP502/X)

The C-TEC XFP502/X is a two loop, 32 zone addressable fire alarm control panel for use with Apollo XP95 and Discovery protocol devices. It is LPCB certified to EN54 parts 2 and 4, housed in a metal enclosure, and suits small stand-alone systems or larger sites using a network of up to eight XFP main panels.

Key features

• Third-party certified to EN54-2 and EN54-4 by the LPCB
• Compatible with Apollo's XP95 and Discovery protocol detectors and devices
• Two short-circuit protected loop drivers
• Two independently programmable conventional sounder circuits and two programmable inputs
• A fault output relay and three programmable relay outputs with volt-free changeover contacts
• Zone dependency/coincidence functions, day/night (occupied/unoccupied) mode, investigation delay and phased evacuation
• Integral EN54-4/A2 switch mode power supply
• Adjustable contamination levels and earth fault monitoring
• Combined keypad/keyswitch entry to Access Levels 2 and 3
• 999 event log and alarm counter
• Windows-based upload/download PC programming
• Up to eight XFP main panels can be networked on a two-wire RS485 network, or up to eight XFP repeaters connected to a non-networked main panel (requires optional AFP711 network card)
• Loop drivers support up to 40 loop-powered 10mA sounders per loop
• Compatible with C-TEC's Hush Button solution and its EN54 certified addressable sounders and VADs

Technical specifications

• Order code: XFP502/X
• Approvals: certified to EN54-2 and EN54-4 by the LPCB
• Protocol: Apollo XP95/Discovery
• Mains supply: 230V 50/60Hz, 680mA maximum
• Internal power supply: 27V DC nominal; total output current limited to 3A @ 230V AC
• Quiescent current: 100mA (2 loops unloaded)
• Batteries: 2 x 12V 7Ah VRLA in series
• Loop drivers: 2
• Maximum loop output current: 500mA (25V min; 34V max)
• Maximum loop length: 1km
• Maximum addressable devices per loop: 126
• Conventional sounder circuits: 2 (maximum 500m per circuit), 400mA maximum sounder output current
• End-of-line resistor: 6800Ω
• Relays: 3 x programmable plus 1 x fault, volt-free single pole changeover, rated 1A at 30V DC
• Auxiliary output: 24V aux. power (19.5V to 28V), 100mA maximum, resettable fuse
• Inputs: 2 x programmable (connect to 0V to trigger)
• PC connection: RS232 molex connector (lead supplied in the separate XFP programming kit)
• Display: 2 line x 40 character backlit LCD with 32 zonal LEDs
• Terminals: fixed, largest conductor size 1mm²
• Dimensions: 410 W x 250 H x 80 D mm (base); lid 439 W x 274 H mm
• Construction: metal enclosure
• IP rating: IP30
• Weight: 4.5kg (without batteries)
• Operating temperature: -5°C to +40°C, maximum 95% relative humidity
