C-TEC ZFP 4 Loop Fire Panel w/ 20 Zone LEDs (Apollo Protocol) (ZFP4/20/X)
SKU: ZFP4/20/XBrand: C-TEC
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
C-TEC ZFP 4 Loop Fire Panel w/ 20 Zone LEDs (Apollo Protocol) (ZFP4/20/X)
£1,626.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 4 Apollo XP95/Discovery loops
- Touchscreen control module (Z41) with a full-colour 480 x 272 pixel display
- 20 programmable zonal indicators with name slots (Z44)
- 5A EN54-4 power supply (BF562-5/E)
- Rapid loop learn, flexible cause and effects and system diagnostics
- Optional hi-integrity fault-tolerant RS485 network (ZHN card): up to 128 nodes (64 main panels and 64 Compact Controllers)
Frequently bought together
C-TEC
C-TEC ZFP 4 Loop Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP4/X)
Sale price£1,523.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
C-TEC
C-TEC ZFP 4 Loop Large Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP4L/X)
Sale price£1,888.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
C-TEC
C-TEC ZFP 4 Loop Medium Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP4M/X)
Sale price£1,784.55
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
C-TEC
C-TEC ZFP 4 Loop Medium Fire Panel w/ Blank Modules (CAST Protocol) (ZFP4M/CA)
Sale price£1,510.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
C-TEC
C-TEC ZFP 6 Loop Large Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP6L/X)
Sale price£2,475.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

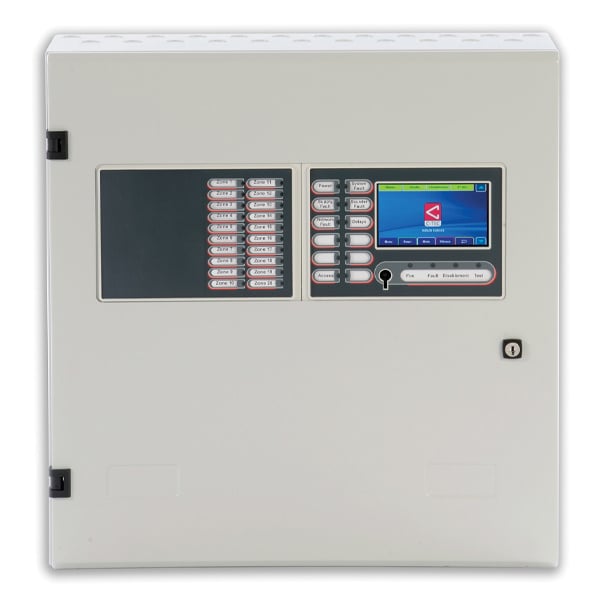

The C-TEC ZFP4/20/X is a touchscreen-controlled analogue addressable fire alarm panel in the ZFP standard cabinet, fitted with 4 Apollo XP95/Discovery compatible loop drivers. It is third-party certified to EN54 parts 2 and 4. This variant is supplied with 20 programmable zonal LED indicators with name slots (Z44 module). Medium and large ZFP cabinets with up to 8 loops are also available.
Key features
- 4 Apollo XP95/Discovery loops
- Touchscreen control module (Z41) with a full-colour 480 x 272 pixel display
- 20 programmable zonal indicators with name slots (Z44)
- 5A EN54-4 power supply (BF562-5/E)
- Rapid loop learn, flexible cause and effects and system diagnostics
- Optional hi-integrity fault-tolerant RS485 network (ZHN card): up to 128 nodes (64 main panels and 64 Compact Controllers)
- RS485 'A-Bus' for up to 15 expansion PCBs (relays, inputs/outputs, sounder circuits)
- Galvanically isolated USB connection for PC programming
- Pager/DECT (RS232) and graphics interface (RS485) connections
- ENVISION enabled for C-TEC's cloud-based remote access software
Technical specifications
- Approvals: certified to EN54-2 and EN54-4 by Intertek
- Protocol: Apollo XP95/Discovery
- Loop drivers: 4
- Max loop output current: 500mA (25V min, 34V max)
- Max loop length: 1km
- Max addressable devices per loop: 126
- Mains supply: 230V 50/60Hz, 1.35A max
- Total output current: 5A at 230V AC
- Batteries: 2 x 12V VRLA in series, 7Ah min to 18Ah max
- Conventional sounder circuits: 2 x 1A (max 500m per circuit), 6800Ω EOL
- Relays: 2 programmable plus 1 fault relay, volt-free single pole changeover, max 1A at 30V DC
- Inputs: 2 programmable (connect to 0V to trigger, max 27V)
- Auxiliary output: 24V (19.5V min, 28V max), max 100mA
- Controls: touchscreen plus 1 keyswitch for Access Level 2
- Dimensions: 450 x 462 x 127mm (W x H x D); semi-flush mounting needs the ZBEZS bezel
- Construction: 1.2mm mild steel, light grey RAL7035 textured epoxy finish
- IP rating: IP30
- Operating temperature: -5°C to +40°C, max 95% relative humidity
Datasheet
C-TEC ZFP 4 Loop Fire Panel w/ 20 Zone LEDs (Apollo Protocol) (ZFP4/20/X) Need the datasheet? Our team will email it to you. Request datasheet
