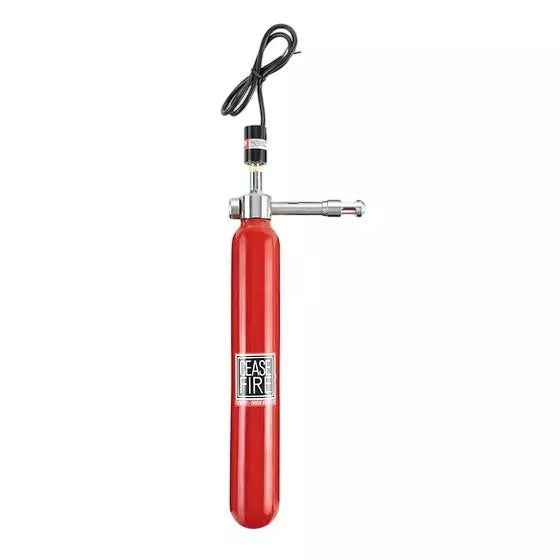

The Ceasefire Mini Pro Adaptive CF-001348ACP is a 500g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), supplied with a 200mm barrel and a 57°C quartzoid bulb. It is designed for spaces too small to hold the unit itself: the body is mounted outside the enclosure and the thin barrel, carrying the heat-sensitive glass bulb, goes inside. When the temperature inside rises past the bulb rating, the agent discharges automatically, with no power supply or human intervention.
The Pro version has a pressure monitoring port, so it can be made monitorable by adding an optional pressure switch and linking it to a BMS, fire alarm system or standalone sounders and strobes.
Key features
- Body mounted outside the enclosure, with a 200mm barrel reaching inside
- Pressure monitoring port for an optional pressure switch
- Fully automatic detection, actuation and suppression; no power supply needed
- Clean agent FK-5-1-12 leaves no residue and will not damage electronics
- For Class A, B, C and electrically started fires
- Fluoroketone falls outside the F-Gas Regulations
- Supplied with a black powder-coated steel transportation bracket
Technical specifications
-
Product code: CF-001348ACP
-
Agent: Fluoroketone (FK-5-1-12), stored pressure
-
Capacity: 500g
-
Barrel length: 200mm
-
Actuation temperature: 57°C
-
Minimum discharge time: 1 to 3 seconds
-
Coverage volume: 0.650m³
-
Concentration: 4.7% (v/wt)
-
Filled weight: Approx. 1.46kg
-
Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm, red powder coated
-
Shell diameter: 50mm
-
Height (body): Approx. 350mm
-
Transportation bracket (H x W x D): 282 x 87 x 67mm
-
Service pressure: 10 bar
-
Test pressure: 35 bar
-
Operating temperature: -20°C to +60°C
-
Warranty: 5 years
-
Certification: PED, UKCA-PED; fire-fighting performance tested by BSI
