Ceasefire Automatic M Series Ceiling Mounted MS Stored Pressure Red (with Thermal bulb of 68C and NRV) (CF-001388B)

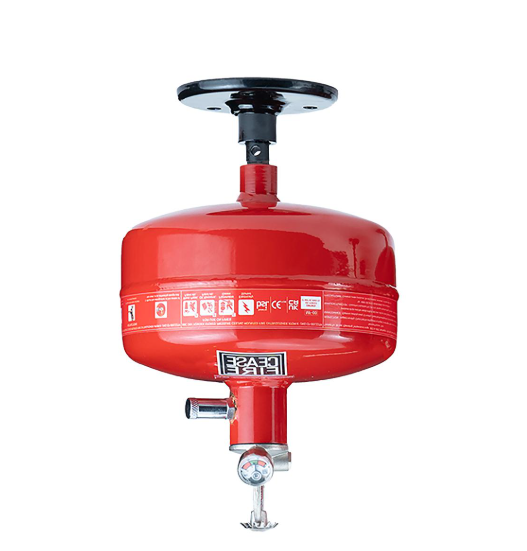

The Ceasefire CF-001388B is a 2kg ceiling mounted automatic extinguisher from the M-Series range, filled with ABC dry powder (MAP90) in a red mild steel cylinder. It is fitted with a sprinkler-style discharge head with a 68°C quartzoid bulb and a non-return valve (NRV). When the bulb reaches its rated temperature it breaks and the powder discharges automatically, even when nobody is present. Being ceiling mounted, it uses no floor space and is out of reach of tampering.

M-Series units can also be actuated electrically by adding a Metron actuator and connecting them to detectors via a control panel as part of a total flooding system. A pressure port allows the unit to be made monitorable with an optional pressure switch.

Key features

• Automatic thermal actuation via a 68°C quartzoid bulb
• Optional electrical actuation with a Metron actuator
• Pressure port for optional pressure switch monitoring
• MAP90 ABC dry powder for Class A, B, C and electrically started fires
• Retrofittable, with no network of pipes or ducts required
• 5 year warranty

Technical specifications

• Product code: CF-001388B
• Agent: ABC dry powder MAP90, stored pressure
• Net contents: 2kg
• Gross weight: Approx. 3.97kg
• Height: Approx. 287mm
• Shell diameter: 175mm
• Actuation temperature: 68°C ±4°C
• Discharge fitting: Sprinkler with quartzoid bulb head
• Minimum discharge time: 2 to 5 seconds
• Maximum coverage area: 5m²
• Maximum ceiling height: 1.5m
• Working pressure: 15 bar
• Hydrostatic test pressure: 35 bar
• Body thickness: 2mm
• Operating temperature: -30°C to +60°C
• Certification: PED, BSI tested, UKCA-PED, CE marked
