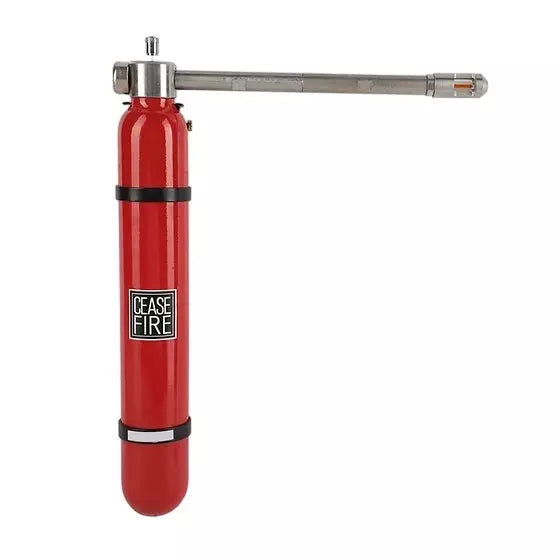

Ceasefire Automatic Mini Adaptive SS Stored Pressure Red (Thermal bulb of 57C) (CF-001348AC)

The Ceasefire Mini Adaptive CF-001348AC is a 500g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), supplied with a 200mm barrel and a 57°C quartzoid bulb. It is designed for spaces too small to hold the unit itself: the body stays outside the enclosure and the thin barrel goes inside. When the temperature inside rises past the bulb rating, the bulb breaks and the agent discharges automatically, with no power supply or human intervention.

Key features

• Body mounted outside the enclosure, with a 200mm barrel reaching inside
• Fully automatic detection, actuation and suppression
• Clean agent FK-5-1-12 leaves no residue
• For Class A, B, C and electrically started fires
• Fluoroketone is outside the scope of the F-Gas Regulations
• Magnetic Bourdon tube pressure gauge
• 5 year warranty

Technical specifications

• Product code: CF-001348AC
• Agent: Fluoroketone (FK-5-1-12), stored pressure
• Capacity: 500g
• Barrel length: 200mm
• Coverage volume: 0.650m³
• Actuation temperature: 57°C
• Minimum discharge time: 1 to 3 seconds
• Filled weight: Approx. 1.46kg
• Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm
• Shell diameter: 50mm
• Service pressure: 10 / 12 bar
• Test pressure: 35 bar
• Certification: PED, UKCA-PED, BSI tested
