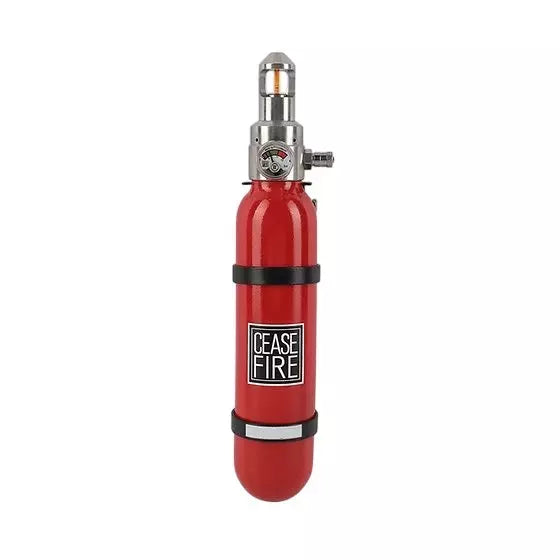

Ceasefire Automatic Mini Intuitive SS Stored Pressure Red (Thermal bulb of 57C) (CF-001343A)

The Ceasefire Mini Intuitive CF-001343A is a 300g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), in a red stainless steel shell with a 57°C quartzoid bulb. It is placed inside, or fixed to the inner wall of, a small enclosed space such as a server cabinet or fuse box and protects it from within: when the bulb reaches its rated temperature it breaks and the agent discharges automatically, with no power supply or human intervention. FK is a cold gas that extinguishes fire by absorbing heat, and leaves no residue.

Key features

• Fully automatic detection, actuation and suppression
• Mechanical release: no power supply needed
• Clean agent FK-5-1-12 leaves no residue and will not damage electronics
• For Class A, B, C and electrically started fires
• Fluoroketone falls outside the F-Gas Regulations
• Magnetic Bourdon tube pressure gauge
• Stainless steel 316L shell

Technical specifications

• Product code: CF-001343A
• Agent: Fluoroketone (FK-5-1-12), stored pressure
• Capacity: 300g
• Actuation temperature: 57°C
• Minimum discharge time: 1 to 3 seconds
• Discharge fitting: Direct nozzle
• Coverage volume: 0.290m³
• Filled weight: Approx. 1.10kg
• Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm, red RAL 3000
• Shell diameter: 50mm
• Height: Approx. 276mm
• Service pressure: 10 / 12 bar
• Test pressure: 35 bar
• Warranty: 5 years
• Certification: PED, UKCA-PED, BSI tested
