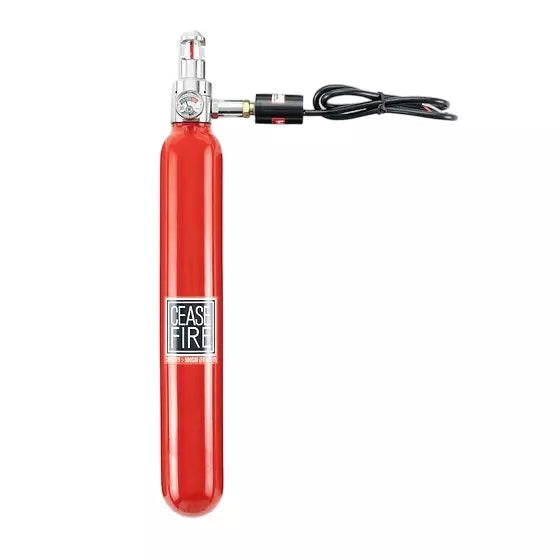

The Ceasefire Mini Intuitive CF-001347A is a 500g automatic micro-environment fire suppression unit filled with the clean agent Fluoroketone (FK-5-1-12), in a red stainless steel shell with a 57°C quartzoid bulb. It is mounted on the inside wall of a small enclosed space (micro-environment) and protects it from within: when the bulb reaches its rated temperature it breaks and the agent discharges automatically, with no power supply or human intervention.
Key features
- Fully automatic detection, actuation and suppression
- Clean agent FK-5-1-12 leaves no residue
- For Class A, B, C and electrically started fires
- Fluoroketone is outside the scope of the F-Gas Regulations
- Magnetic Bourdon tube pressure gauge
- Stainless steel 316L shell
- 5 year warranty
Technical specifications
-
Product code: CF-001347A
-
Agent: Fluoroketone (FK-5-1-12), stored pressure
-
Capacity: 500g
-
Coverage volume: 0.650m³
-
Actuation temperature: 57°C
-
Minimum discharge time: 1 to 3 seconds
-
Discharge fitting: Direct nozzle
-
Shell: Stainless steel 316L (1.4435), minimum wall thickness 1.2mm
-
Shell diameter: 50mm
-
Height: Approx. 386mm
-
Service pressure: 10 / 12 bar
-
Test pressure: 35 bar
-
Certification: PED, UKCA-PED, BSI tested
